LED Signs (Letters)
Feature of Lumi Letter Series

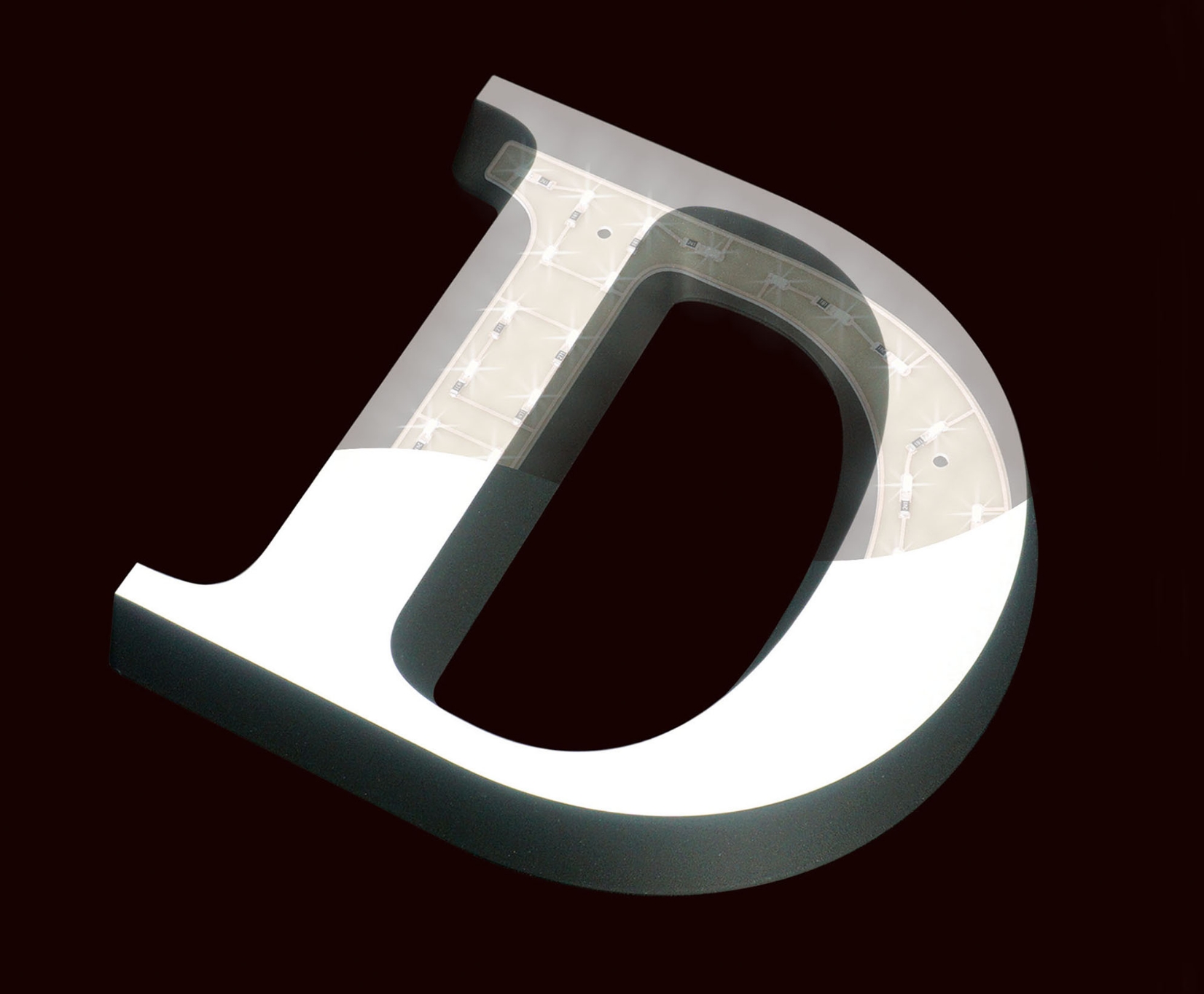

Lumi Letter
Features 01
Scientifically proven “Safety and Quality”
with “five-year warranty”
5 YEAR WARRNTY
*Covers the LED Chip.
Lumi Letter Series
Celebrates its 20th year since its launch.
Over 48,000 deliveries
Features 02
There is a major improvement due to our LED auto-placement system integrated with AI.
Provide faster and more beautiful.
Depending on each order, the sign can have a different logo design and size. Since most orders are unique, the LED layout on the letter signs had to be designed manually. However, due to years of research, most of this work has been automated with the help of AI and computers.
Now the work of installing the LED lights takes just six minutes. A task that previously took 60 minutes can now be completed in just six!
-
Image of conventional manually arranged LED board (LED: 16 bulbs).
Depending on the thickness of the logo, the pitch of each bulb is adjusted individually. -

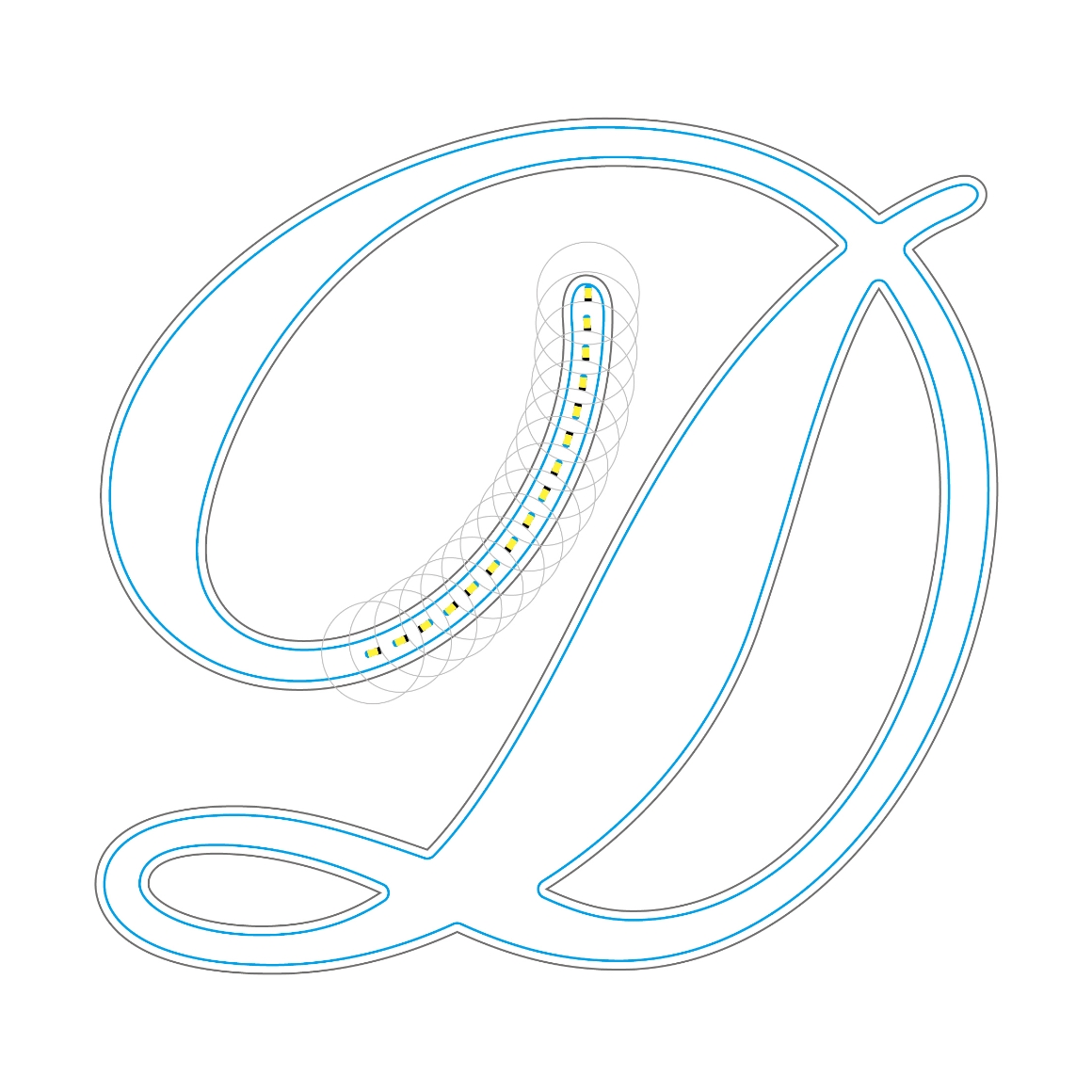

Image of a LED layout generated with the help of AI (LED: 160 bulbs).
The bulbs are installed close together, and the light they illuminate appears like a wave overlapping each other so that the brightness is uniform.
The simulation system developed from cutting-edge technology instantly visualizes uneven LED illuminations.
This expertise that has been gained over long years continues to evolve through AI deep learning.
Features 03

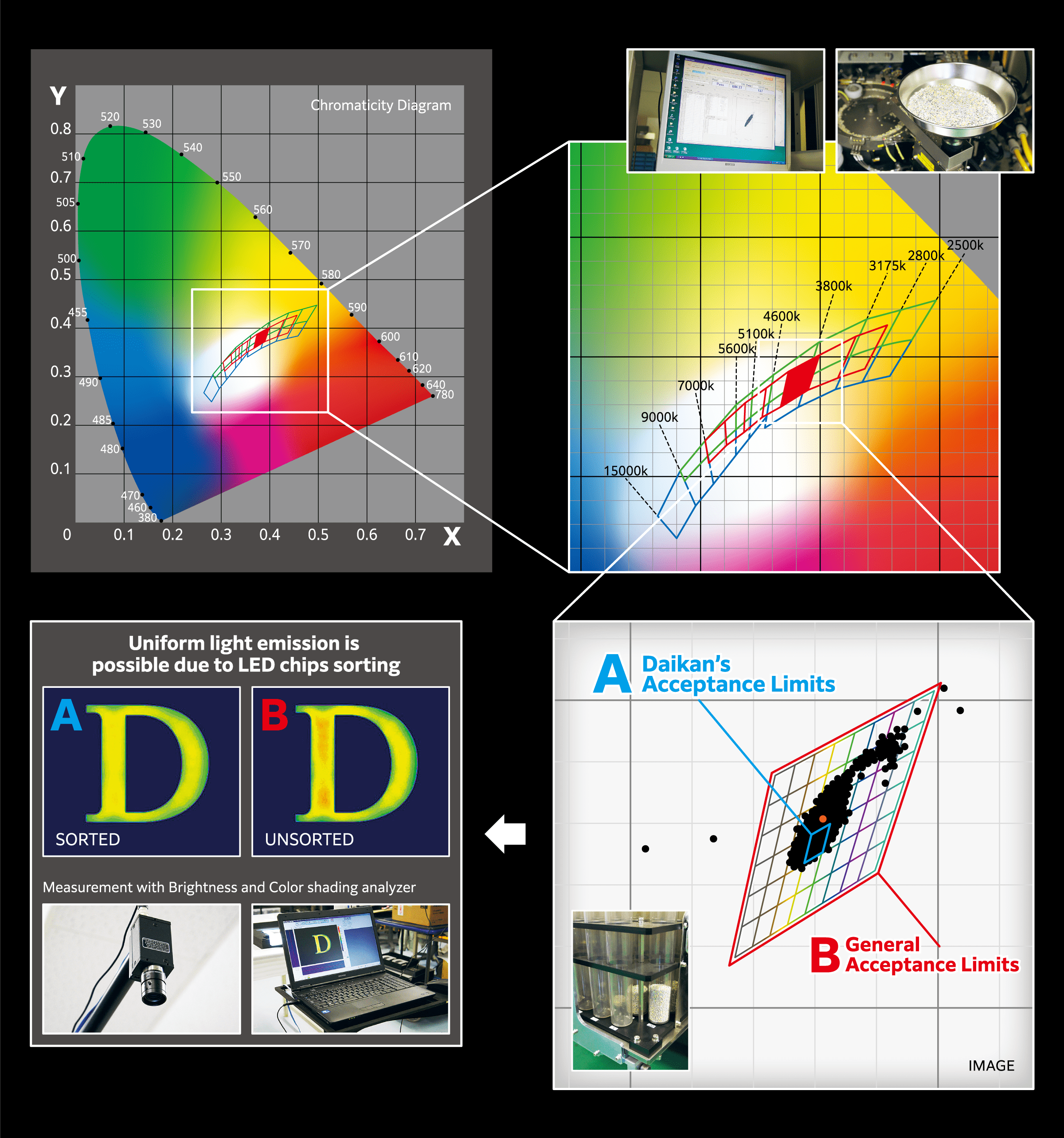

LED Sorter Machine for Uniform and Beautiful Illumination
We test the light emission of each individual LED chip with our LED color sorter which further divides the ranks specified by LED manufacturers into 96 groups. Lumi Letter Series utilizes the sorted chips that perfectly match the color temperature and electrical properties for uniform color and illumination, enabling us to offer you the world’s highest quality products!
Features 04
The abundant line-up of new Lumi Letter colors!
Expanded number of neutral finishes from 5 to 8, and color finishes from 4 up to 8, bringing the total to 16 colors with 7 new additions.
Our key focus is on lamp color temperatures that create an antique ambience and luminance.
LED Color Variation
-
Cool White
6100K (6400K-5800K) -
Natural White
5200K (5500K-4900K) -
Vanilla White
4700K (4900K-4500K) -
Ivory White
3900K (4100K-3600K) -
Warm White
3400K (3600K-3100K) -
Lamp Color
3000K (3200K-2800K) -
Antique Lamp *
2700K (2900K-2600K) -
Candle Color *
2200K (2300K-2100K) -
Blue -
Sky Blue * -
Green -
Yellow * -
Amber -
Red -
Purple * -
Pink *
*Please note that Antique Lamp,Candle Color,Sky Blue,Yellow,Purple,Pink are indoor use only.
*The color of the sign is opal when the light is off.
*The actual colors may slightly differ from images above.
Color Temperature Chart
Swipe left or right to view.
Features 05

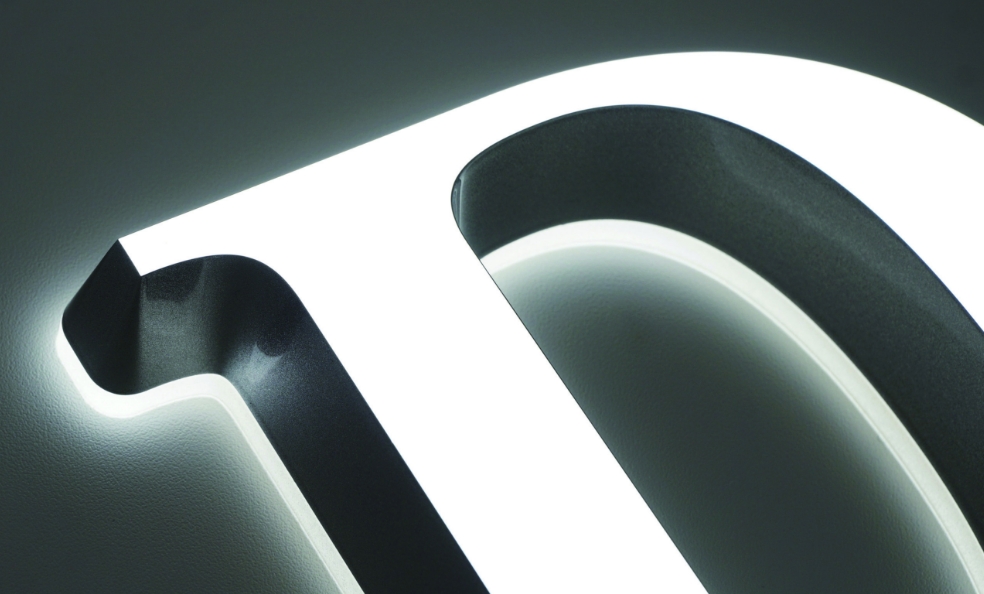

The expressive cutting variations and the quality of our logo’ edge are best in the industry.

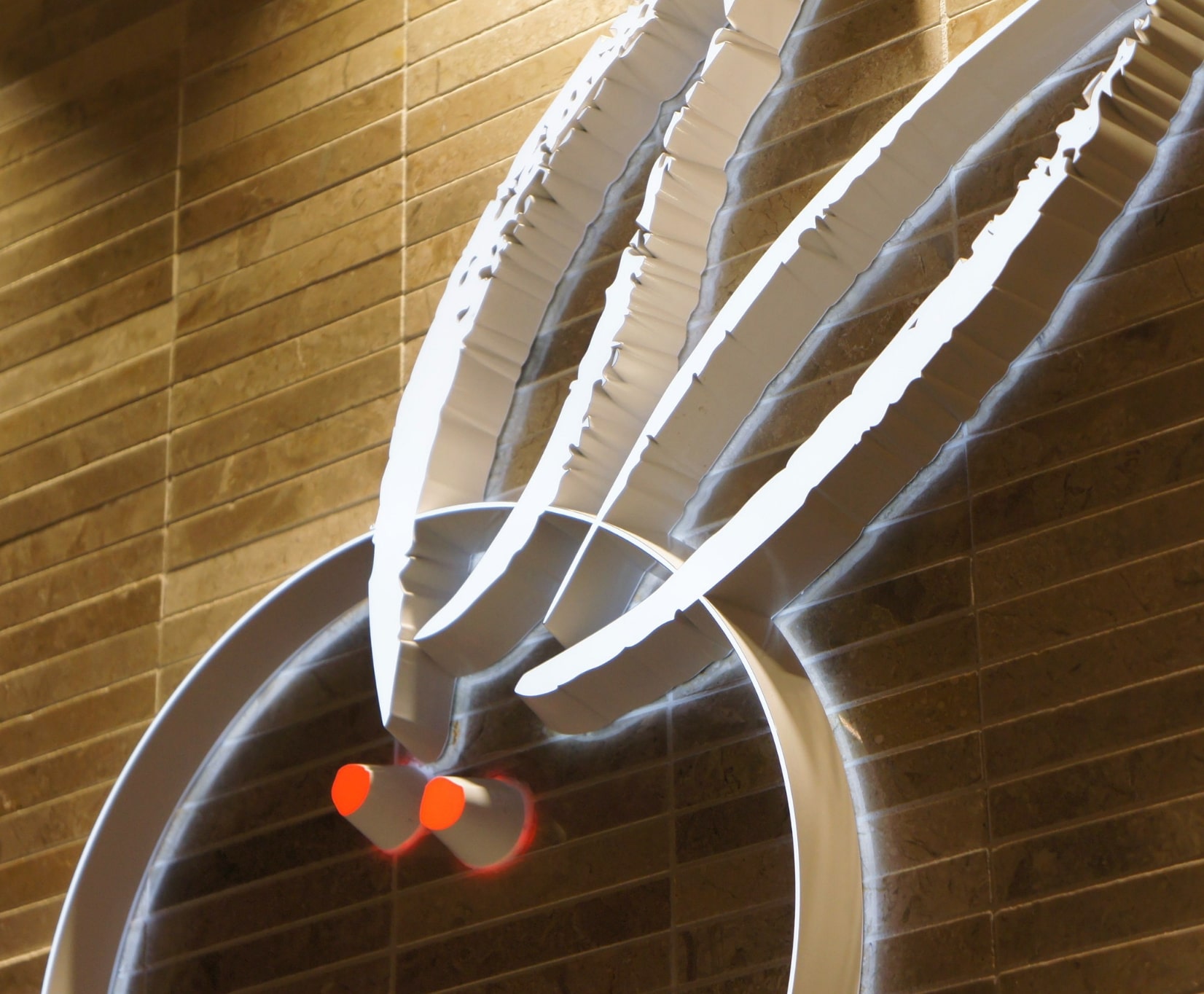

Designs are actualized by utilizing a wide variety of cutting techniques with various bevel angles, cutting combinations, and curved surfaces. We have a world-renowned reputation for how beautiful our cut surfaces are.
Please choose from Straight Cut or Bevel Cut for the sided shape
-
Straight Cut for an identical recreation of your logo
-
Bevel Cut for various signage expressions and design
PATENT NUMBER (JP) : 4253819
Features 06
Quick Release System
For long-lasting Lumi Letter series…
Lumi Letter Series is praised for its superior durability and reliable long operating life which, under regular conditions, will last for over 10 years (Light
source: 5-year warranty).
Moreover, with the Quick Release System you can easily detach and relocate your signage, maximizing its lifespan and value without damaging the installation location or product. This highly recommended system offers viable solutions for emergency and maintenance periods, such as lighting failure due to wiring issues or damaged LED boards, reducing downtime and stress.
The quicker, the better! The easier, the better!
Our newest “Quick Release EASY” version delivers theft prevention without the need for a specialized key to release the “Lock Pin” system, as is required with our previous Quick Release System. This new version is keyless, meaning you rest easy when it comes to both outside and in-office thefts or pranks. Please try the new version for an even quicker and easier installation!
Features 07
For Safe and Reliable Use

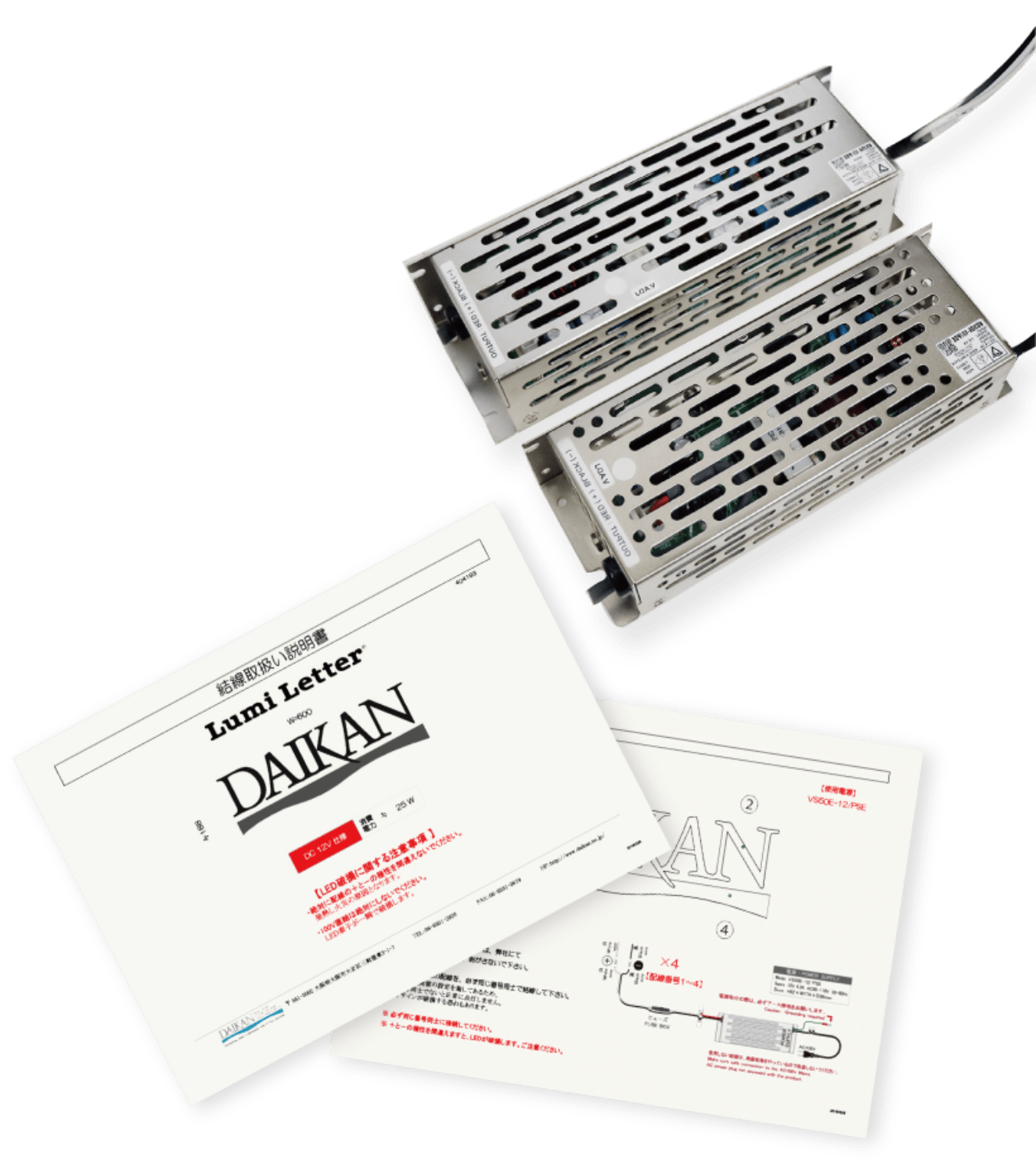

For your safety and assurance, we provide a designated AC/DC power supply and instruction manual with each Lumi Letter Series product. Lumi Letter Series cannot be directly connected to AC mains because it may damage to the LED product alongside causing potential electrical shock and fire hazards. If the wiring of + and - are reversed, the products would also be damaged. For installation of Lumi Letter Series, please follow the guidelines in the instruction manual provided.
Features 08

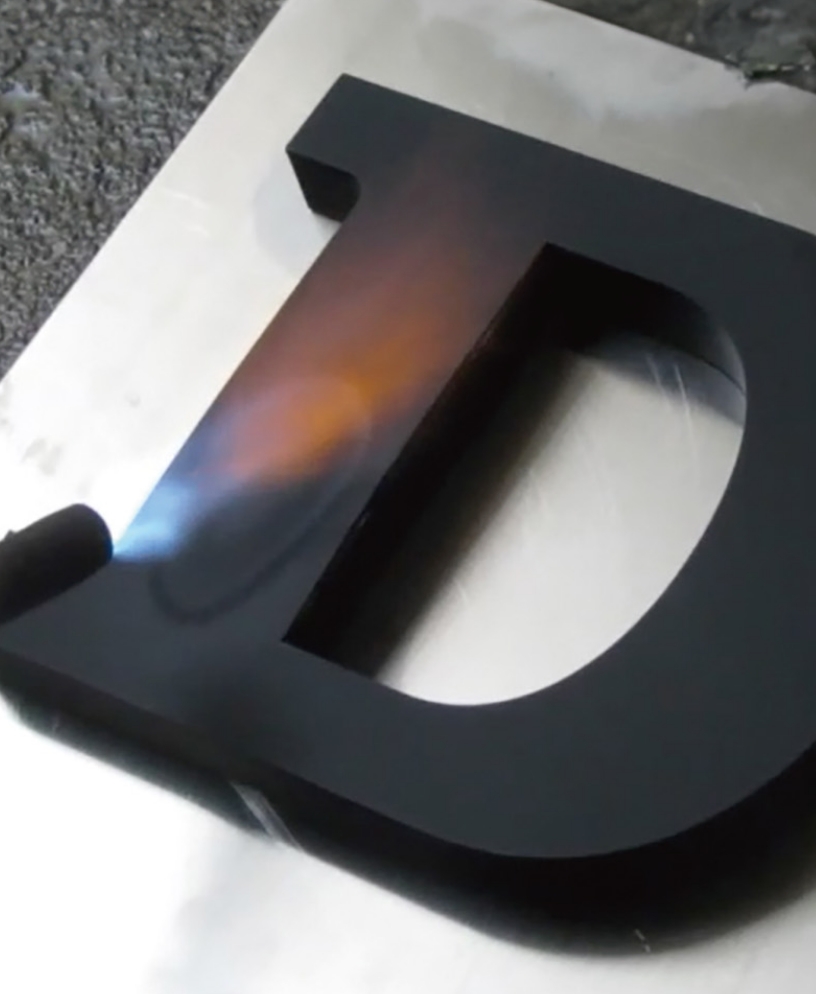

Lumi Letter Series certified as a flame retardant
The “Building Standards Act” of Japan restricts interior finishes or applications that may induce the spread of fire, produce toxic gases, or obstruct people from evacuating in the case where a fire breaks out inside a building. These regulations apply to signages and are becoming stricter, particularly in underground stations or on the basement floor of shopping malls where many people gather. In response, we created a new material, composed mainly of polycarbonate, which exhibits excellent fire retardancy and has self-extinguishing qualities. The release of Lumi Letter with this new material is coming soon.
Whach Videos
Features 09
Confidence in the Durability of Our Coating

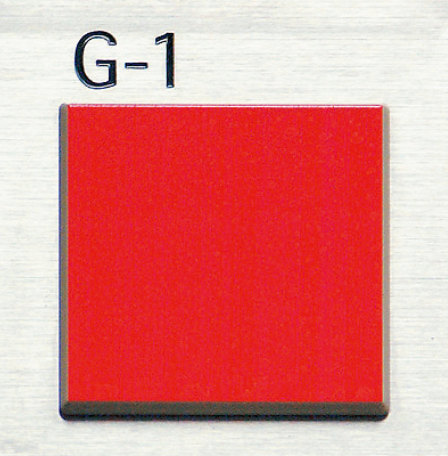

We repeatedly test the compatibility and adhesion strength of paints and primers of different manufacturers using industrial testing machines to improve the durability of our coating. We strive to create Lumi Letter products with excellent finishing that exceeds your expectations.
Weatherability Test by Sunshine Carbon Arc Lamp Weather Meter
- Testing By:Japan Paint Inspection & Testing Association
- Test Duration:2000 hours ( Corresponds to 6 years )
- Specifications:ABS Resin Red Painted 3mm Thick w/Clear Coat
- Result:No Recognizable Defect.
-
Before -
After
Features 10
The Quality Control System Re-producing Exact Same Logo after 10 Years
Our data management system records all production information at the time of shipment, such as LED position on a one-off PCB and color temperature, so that we can manufacture and re-produce exact same logo even after 10 years.
Features 11
Compatible with Electrical Safety Standards and Export Procedures Worldwide
We have delivered our Lumi Letter products to 122 countries (As of December 2023)
Our products sufficiently meet the world safety standards such as UL, CE, CCC, and KC. We can arrange exporting procedures on your behalf.
