LED Peripheral Device
Motion Memorizing Controller
Easy programing for illumination arrangement with LED module (Single color / RGB)
Easy programing for illumination arrangement with LED module (Single color / RGB)
Drawing attention and creating buzz
Steal your visitors’ attention and get them posting on social media with eye-catching signs. A video of "Aunt Stella's Cookies Shibichika Store," installed in July 2021, went viral and grabbed a huge amount attention on Twitter.

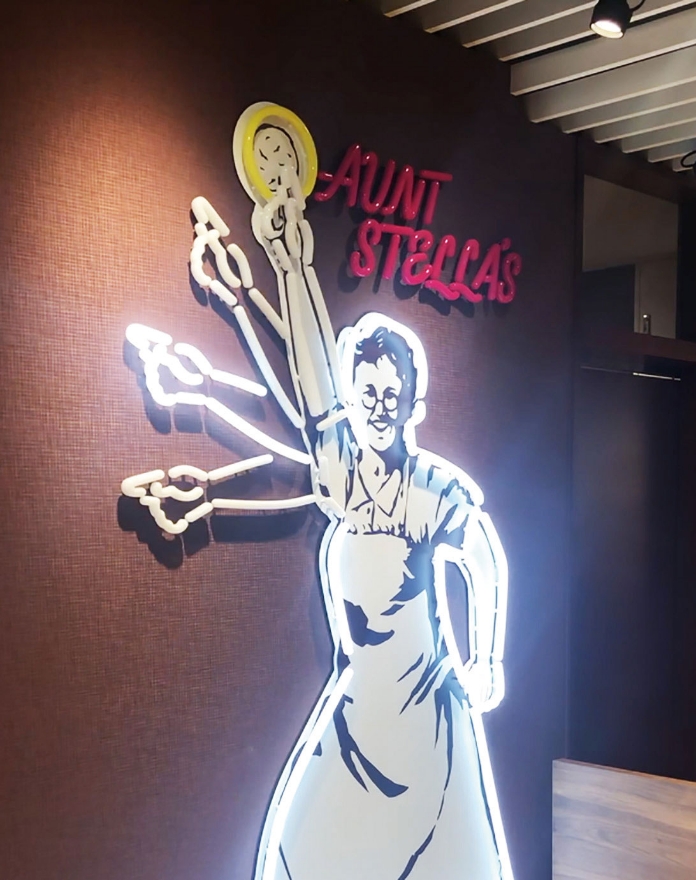

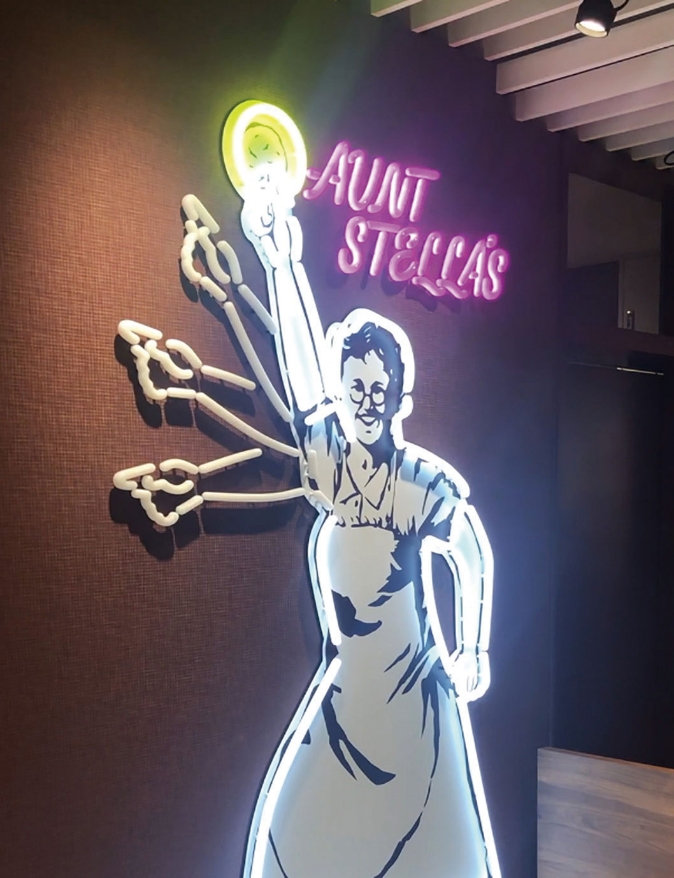

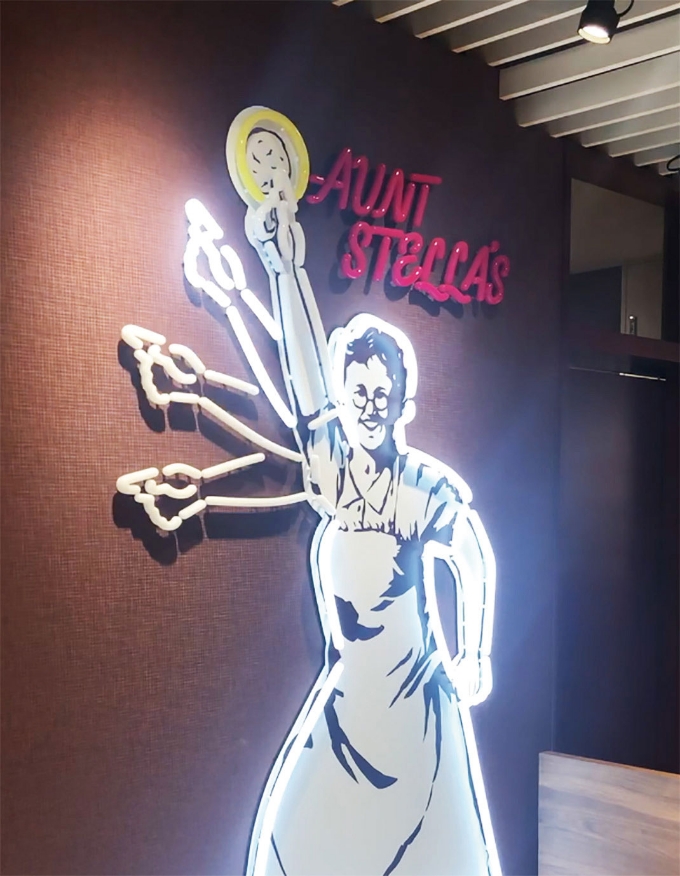

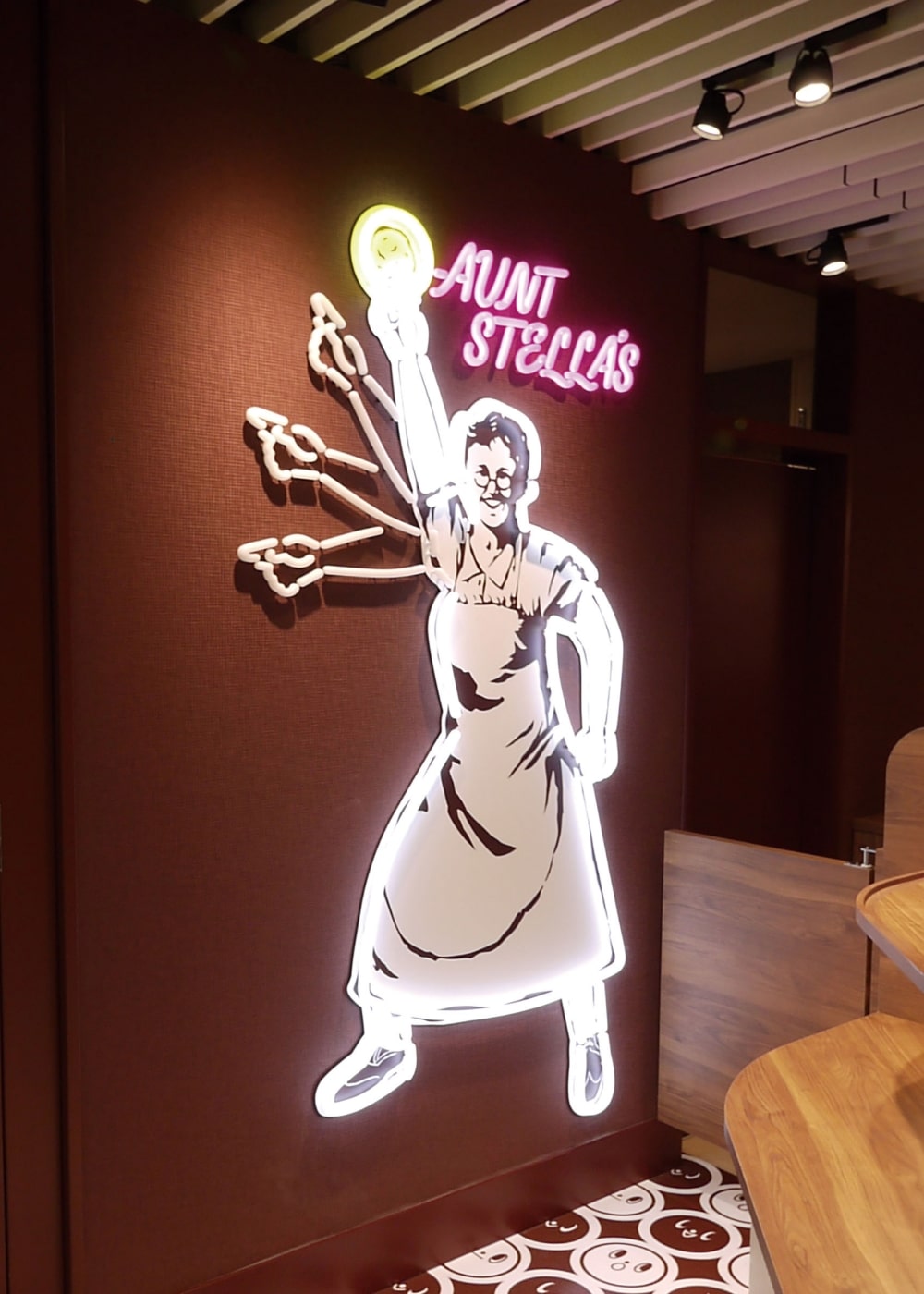

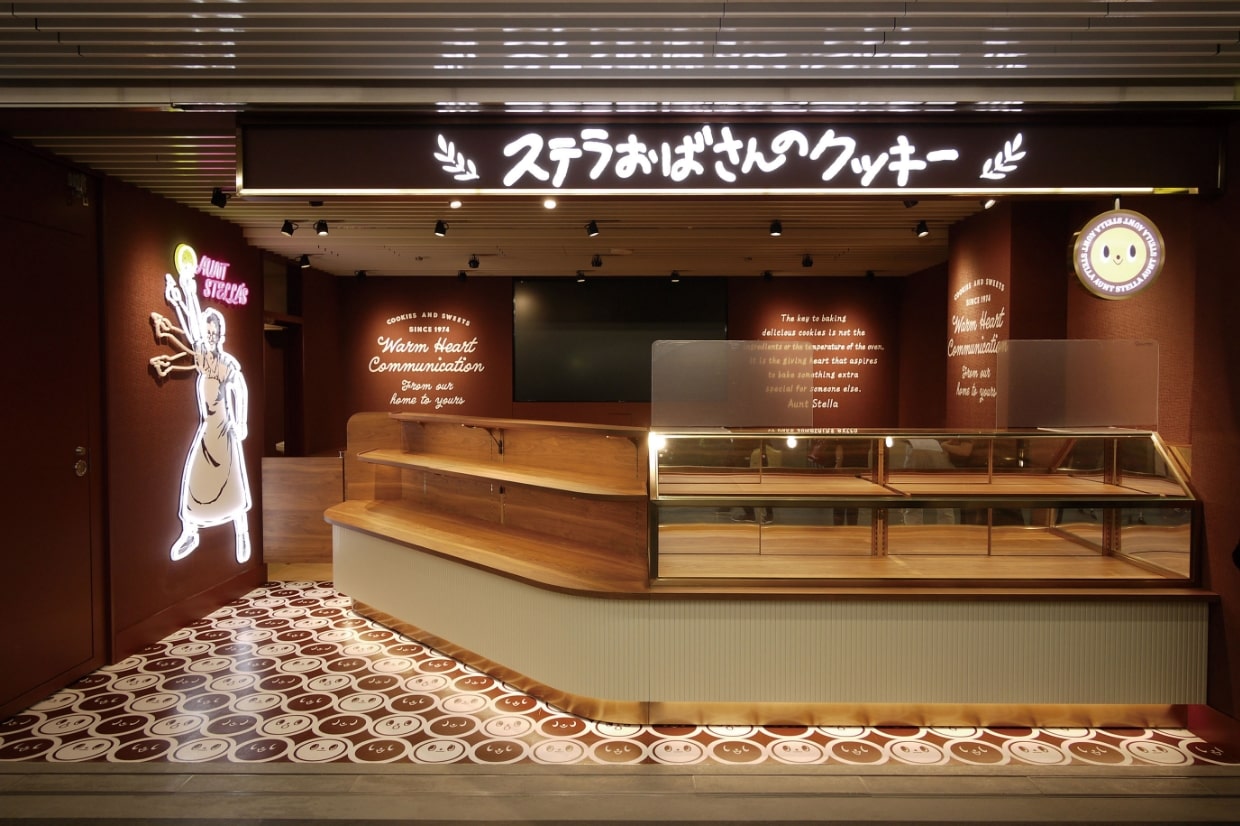

Aunt Stella's Cookies Shibichika Store
Type: Lumi Letter TUBE-2 (Color Clear Coating Type)
Body: Special Luminance Resin 15mm dia. Pink DK,Yellow-DK,Natural White-DK
Light Source: SMD-LED

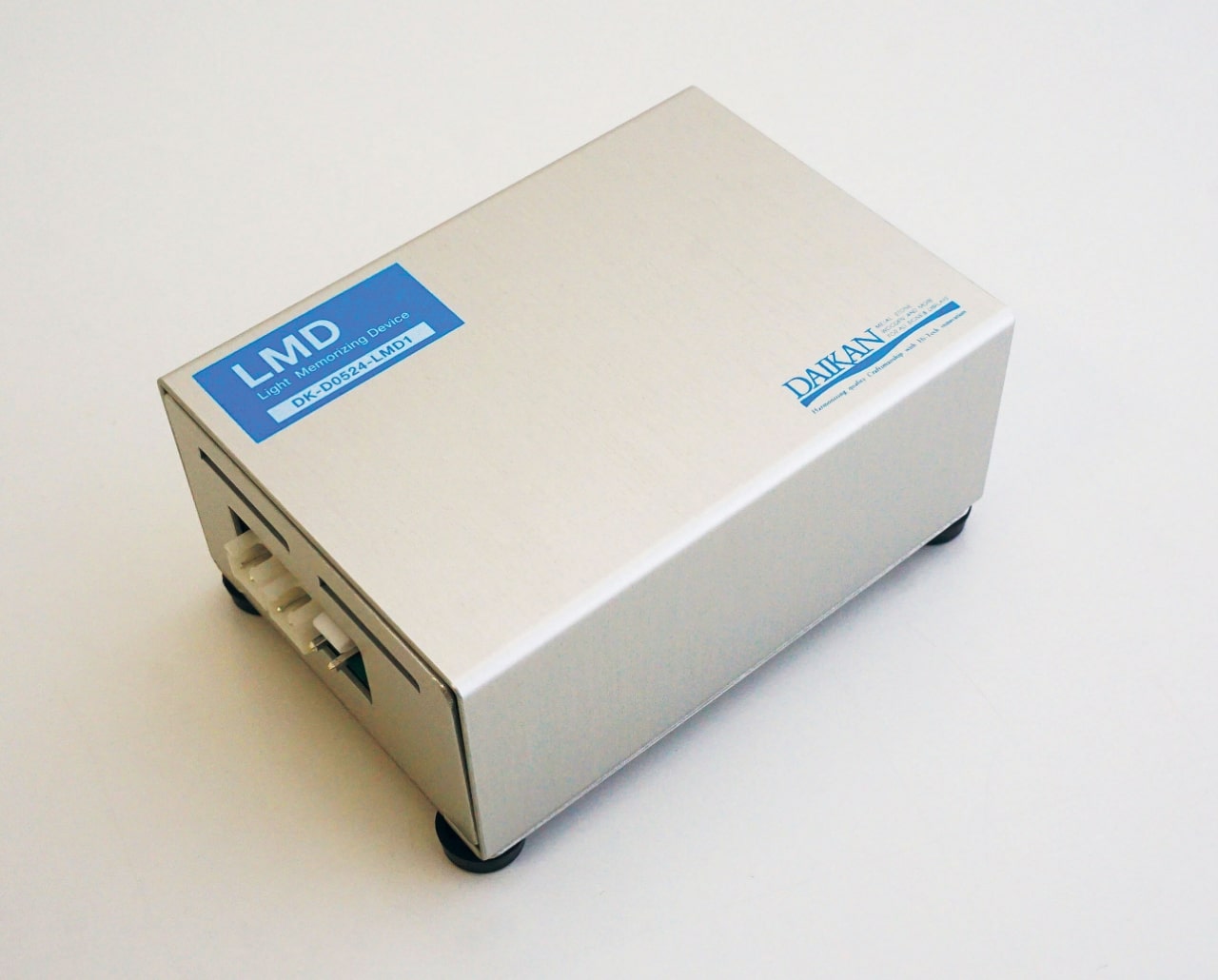

Motion Memorizing Controller
| Product Name | Motion Memorizing Controller |
|---|---|
| Product Number | DK-D0524-LMD1 |
| Input | DC5~24V |
|---|---|
| Output | 6A(2A×3ch) |
| Output Signal | PWM |
| Weight | 116g |
| Installation | Floor stand (Indoors) |
| Warranty Period | 1 year from the date of purchase. (To be replaced with a working product. Does not include any replacement work or the construction.) |
|---|---|
| Separately Available Items | AC/DC Power Supply (Capacity varies depending on LED types.) |
-
You can easily program the lights by yourself!
The included editing software allows you to easily program the lights.
*Please feel free to ask us to do the programming for you. -
Multiple units can be connected and multiple patterns of programs can be stored!
Maximum 10 LMD units can be combined to synchronize the control. Maximum 20 gradation settings can be stored. Maximum 85 hours of programs can be registered.

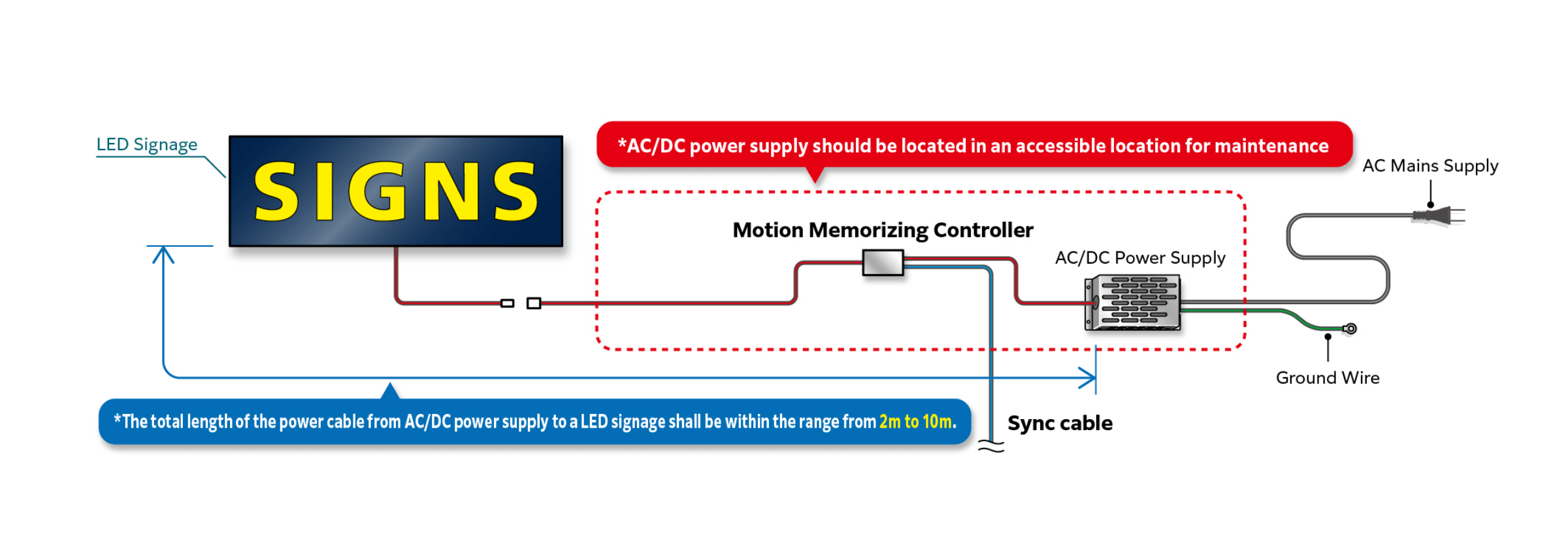

Connection Diagram
Swipe left or right to view.

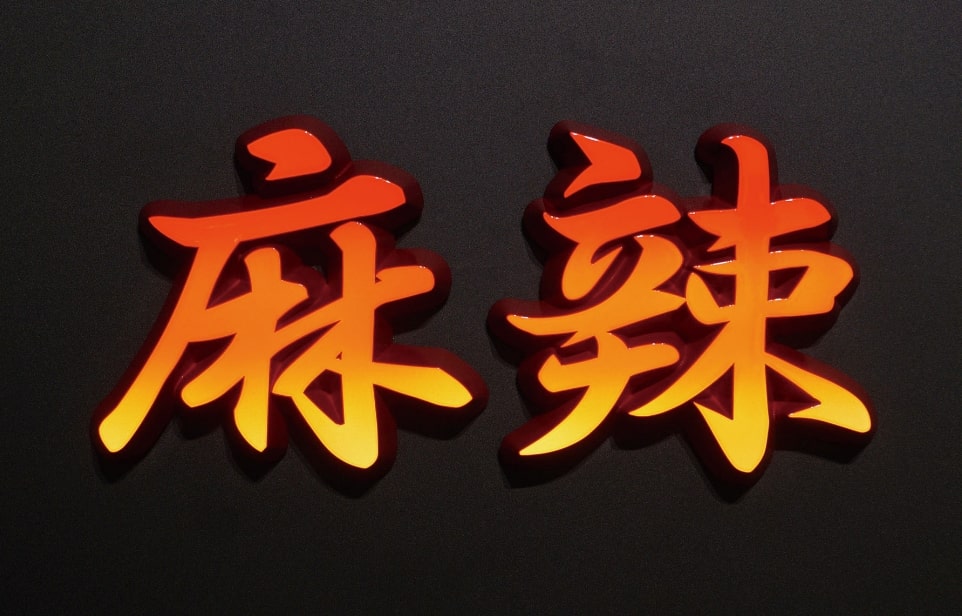

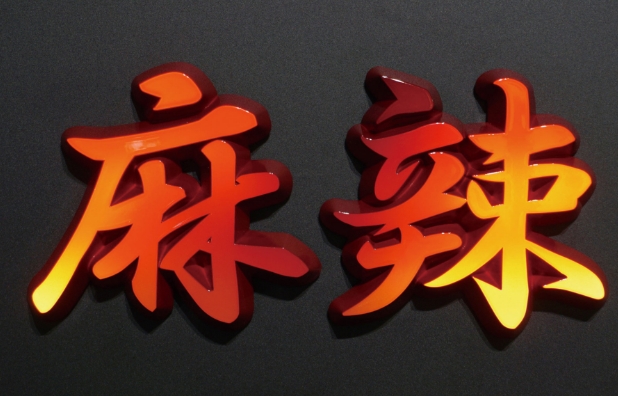

Gradient Clear Coating and Motion Memorizing Controller Combination
Luminant expression of rippling water surfaces and flickering flames. Made possible only with Daikan's honed techniques and painting technology.
-

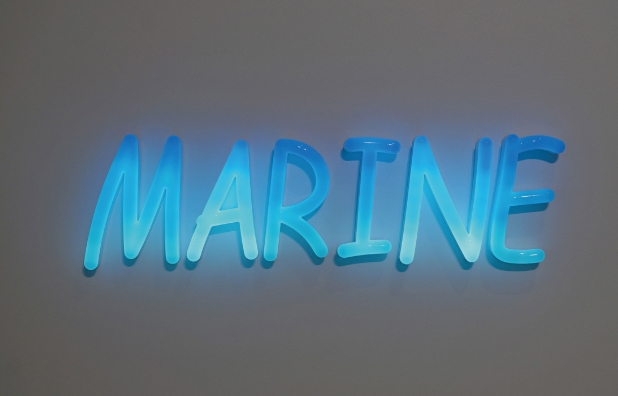

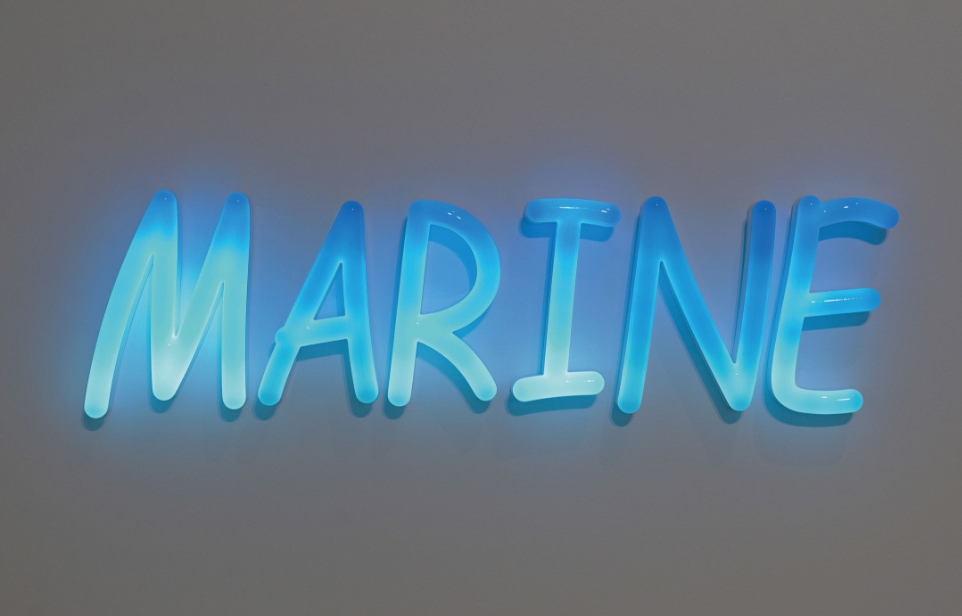

Whach VideosEmulates the movement of gently lapping waves
-
Whach VideosExpressing flickering like a burning flame

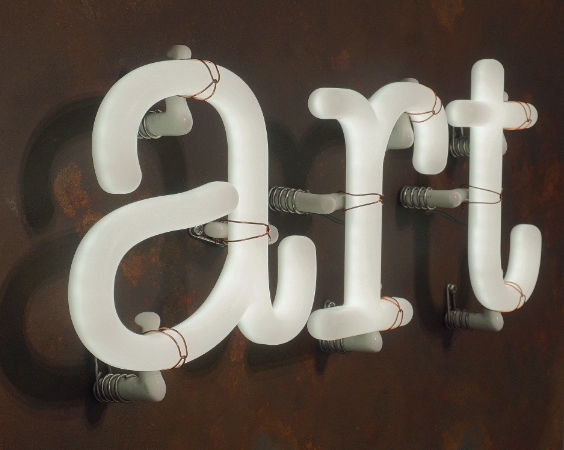

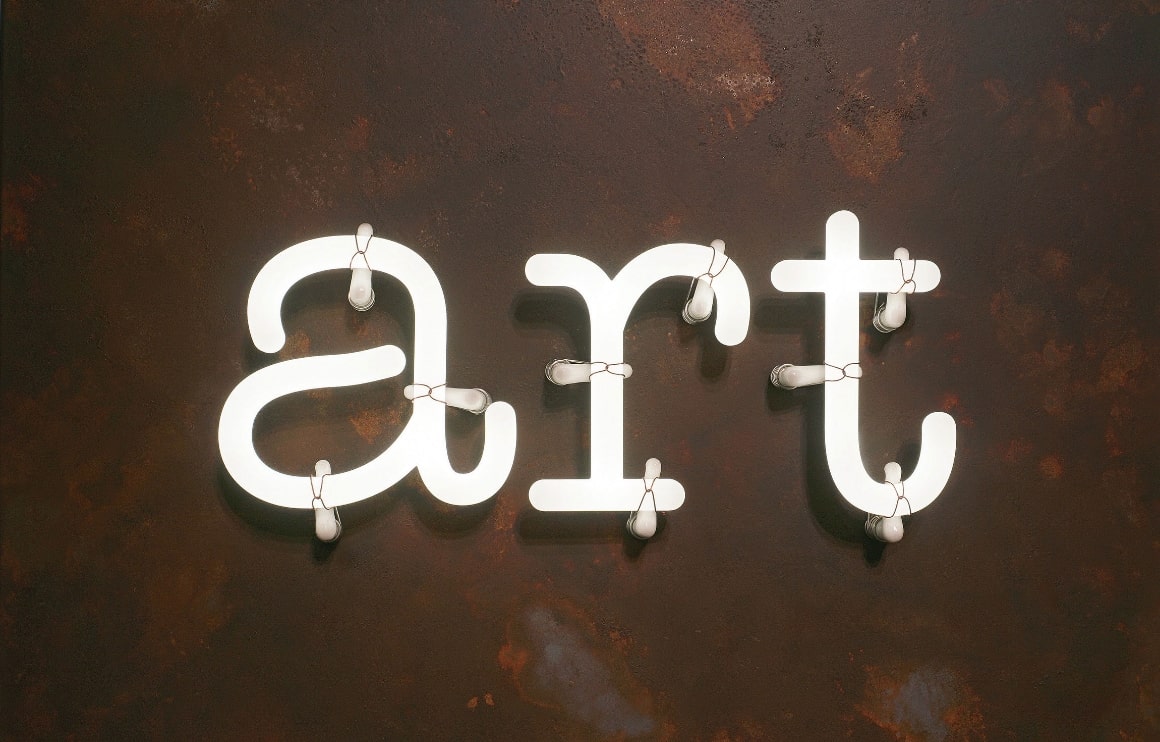

Lumi-Letter Tube Closely Resembles Neon Tube
Even neon flicker can be expressed with Motion Memorizing Controller. Emulate neon flickers using the motion controller to create that real vintage neon sign-like appearance! From authentic depictions to playful twists on “reality,” there’s creative options for all imaginations.
