Lumi Letter Series
Lumi Letter Ultra Slim
By leveraging the evolution of one-off circuit boards and bevel cuts, we can even maintain the illumination of delicate logos without any distortion.
The ultimate “Ultra Slim” is our latest trademarked technology which can create any elaborate LED signage design as you desire.

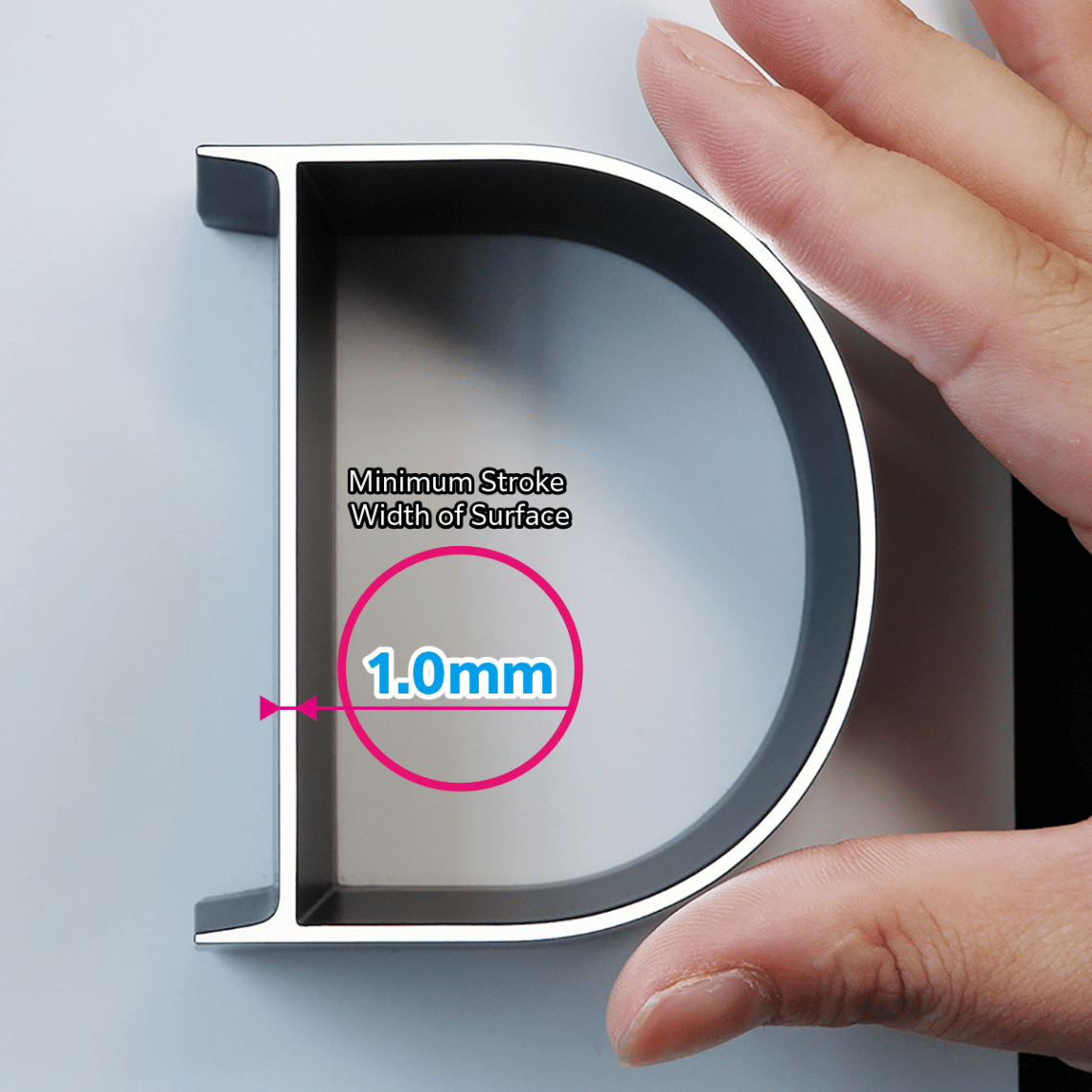

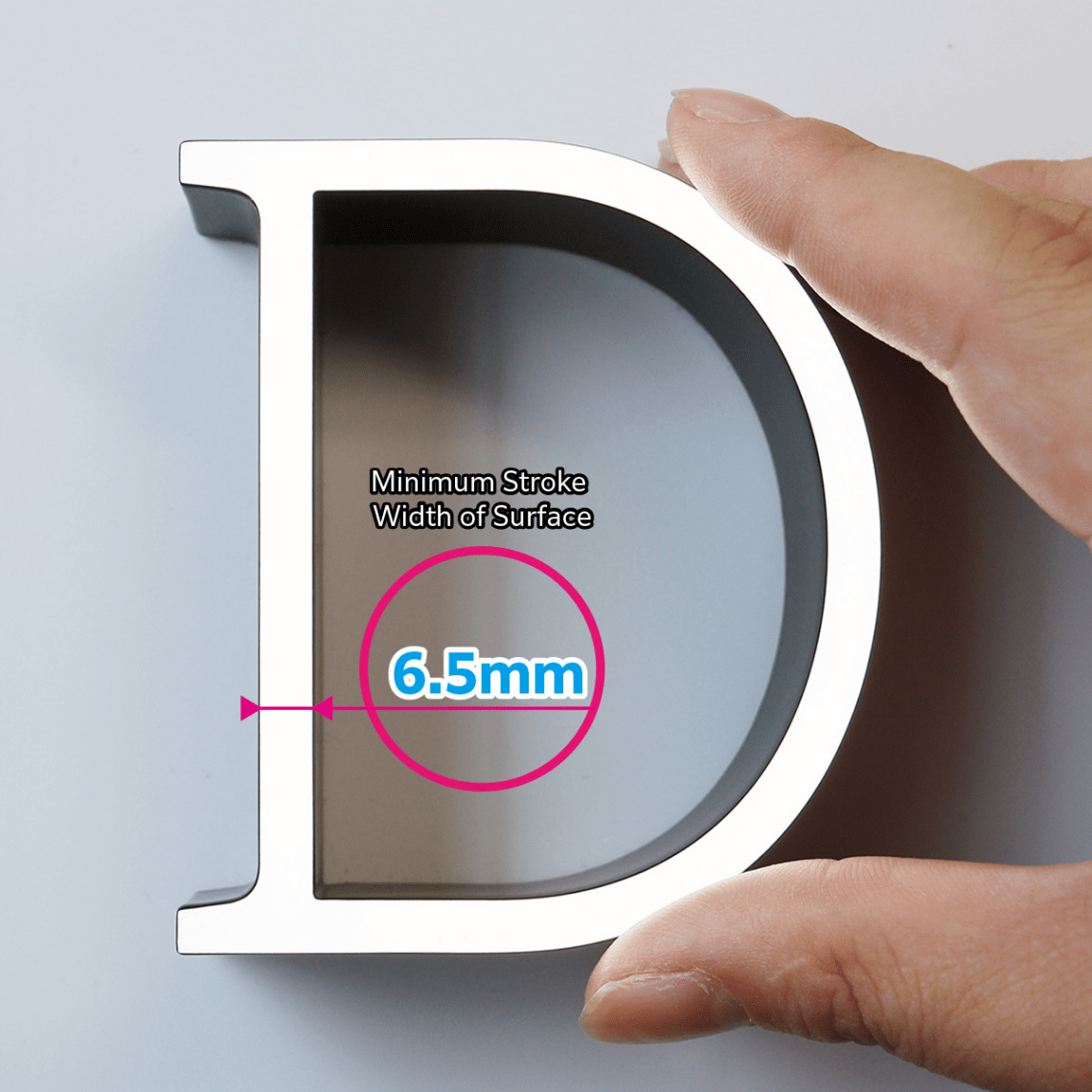

Minimum Stroke Straight 6.5mm Bevel 1.0mm
More delicate signage designs are available than before
-

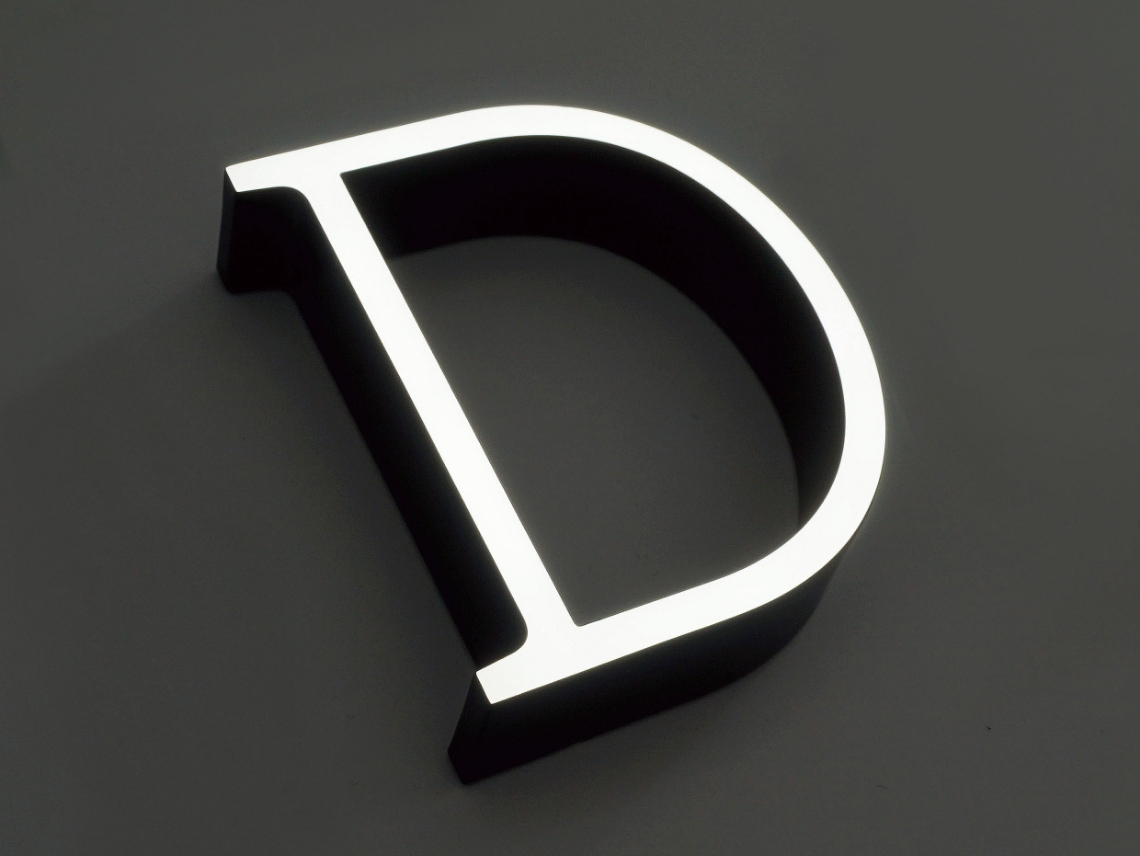

Straight Cut
-

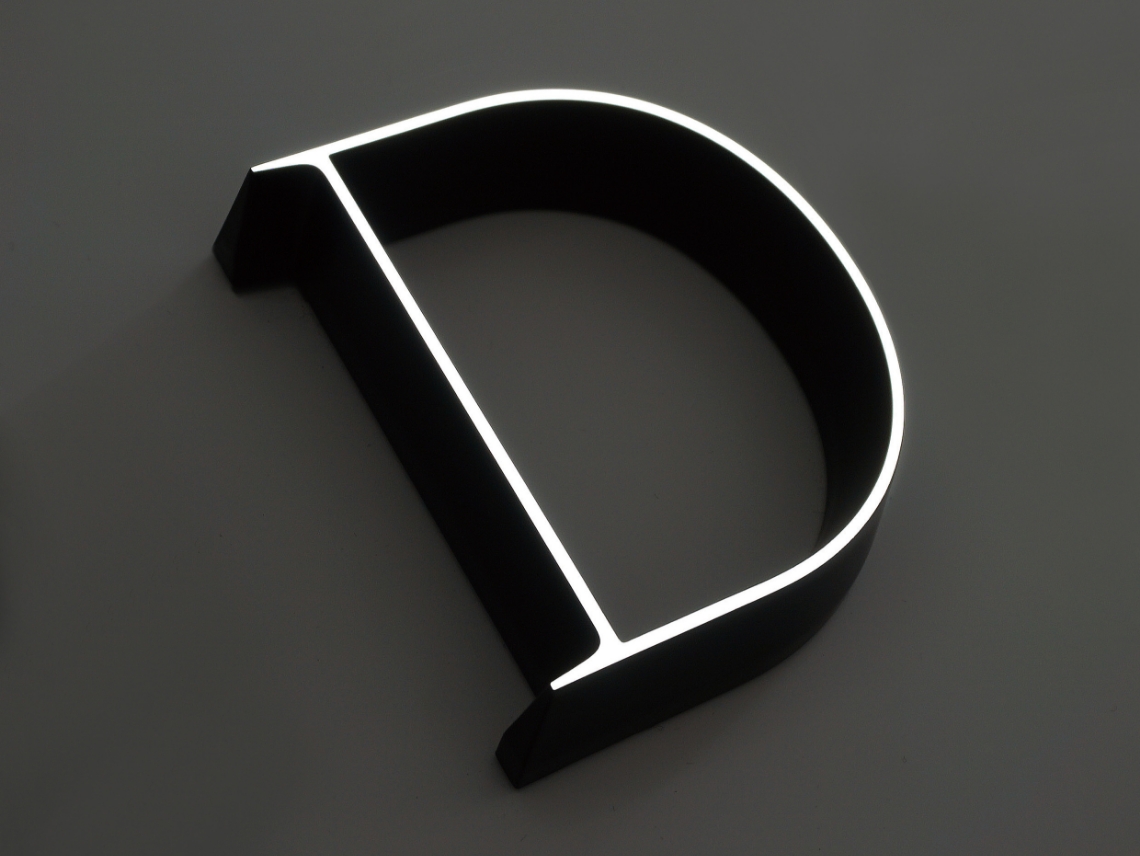

Bevel Cut
Ultra Slim
Cutting Variation
-
-
Straight Cut
-
Height=80mm -
Bevel Cut
Minimum Stroke Width
| angleThickness | Straight | w/8° Bevel | w/15° Bevel |
|---|---|---|---|
| 15mm | 6.5mm | 3.97mm | 1.14mm |
| 20mm | 6.5mm | 2.56mm | 1mm |
*Only 20mm Thick is possible over the stroke of 10mm.
