DAIKAN LED Line

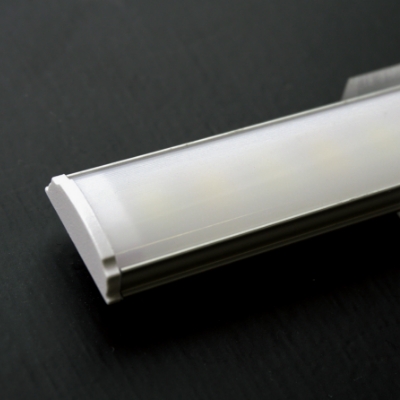

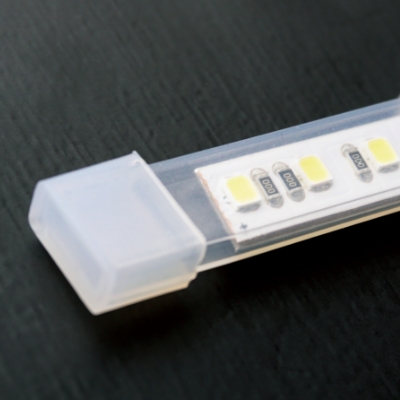

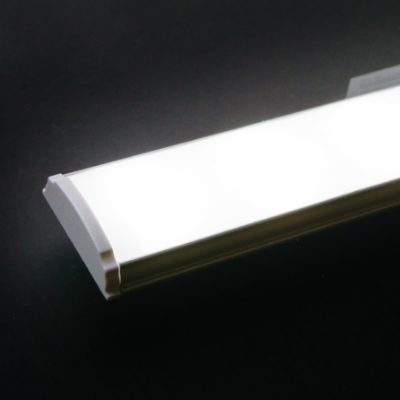

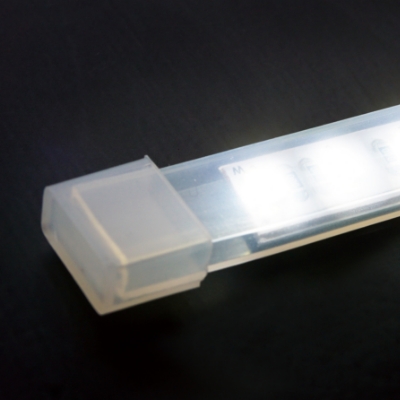

This is a line illuminating fixture using White, Lamp & LW (twin type with Lamp and White) & RGB LED tape lights encased in aluminum or silicone cases.

Line Light Source for Enhanced Spatial Expresstion

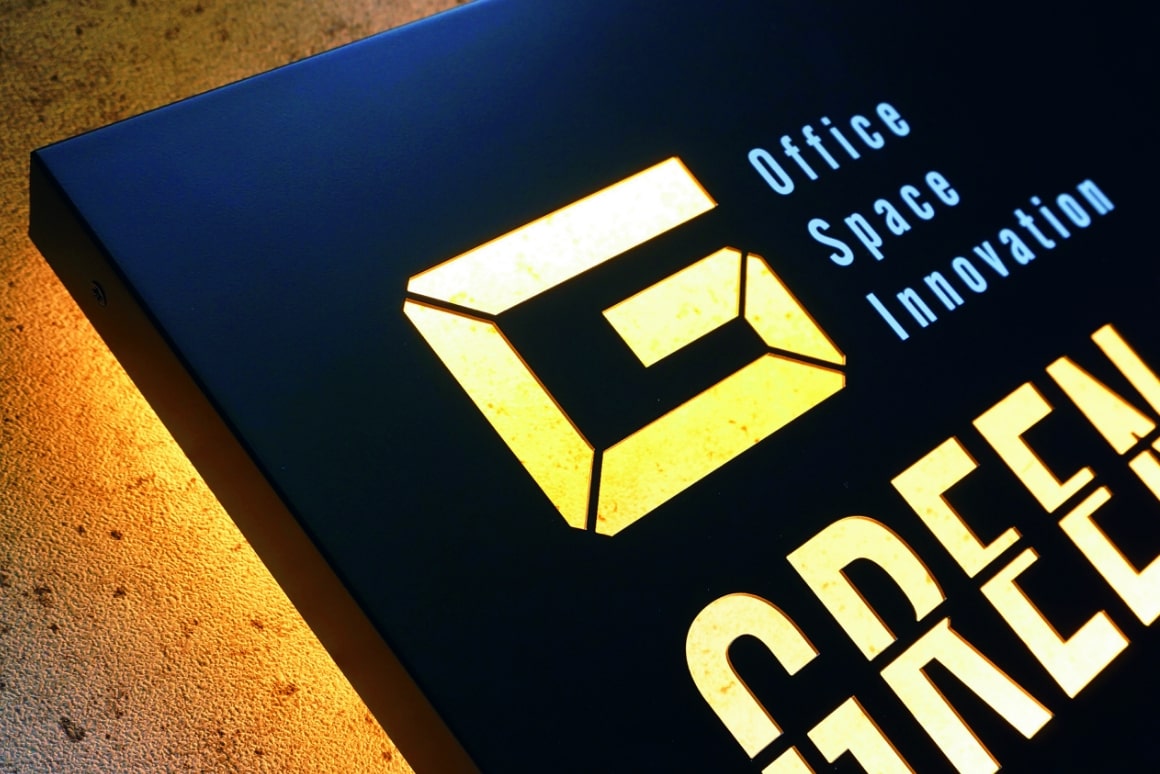

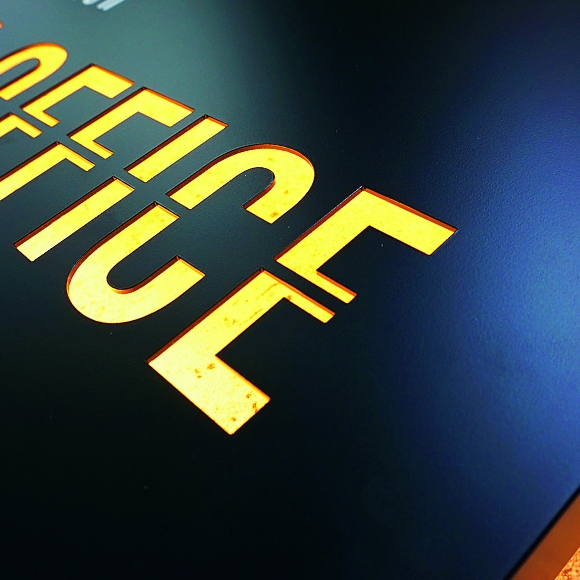

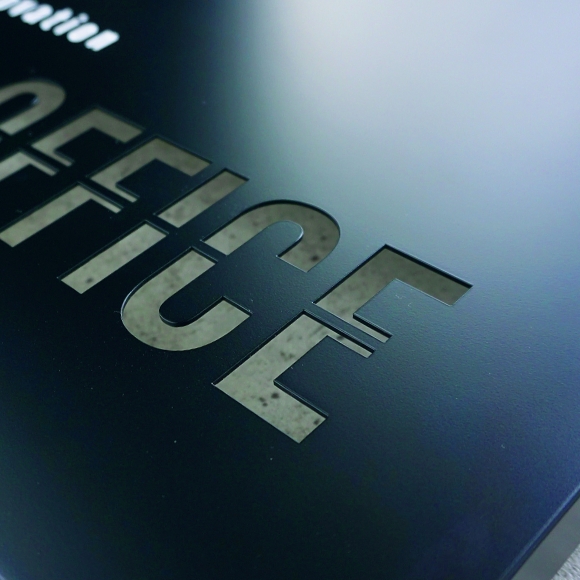

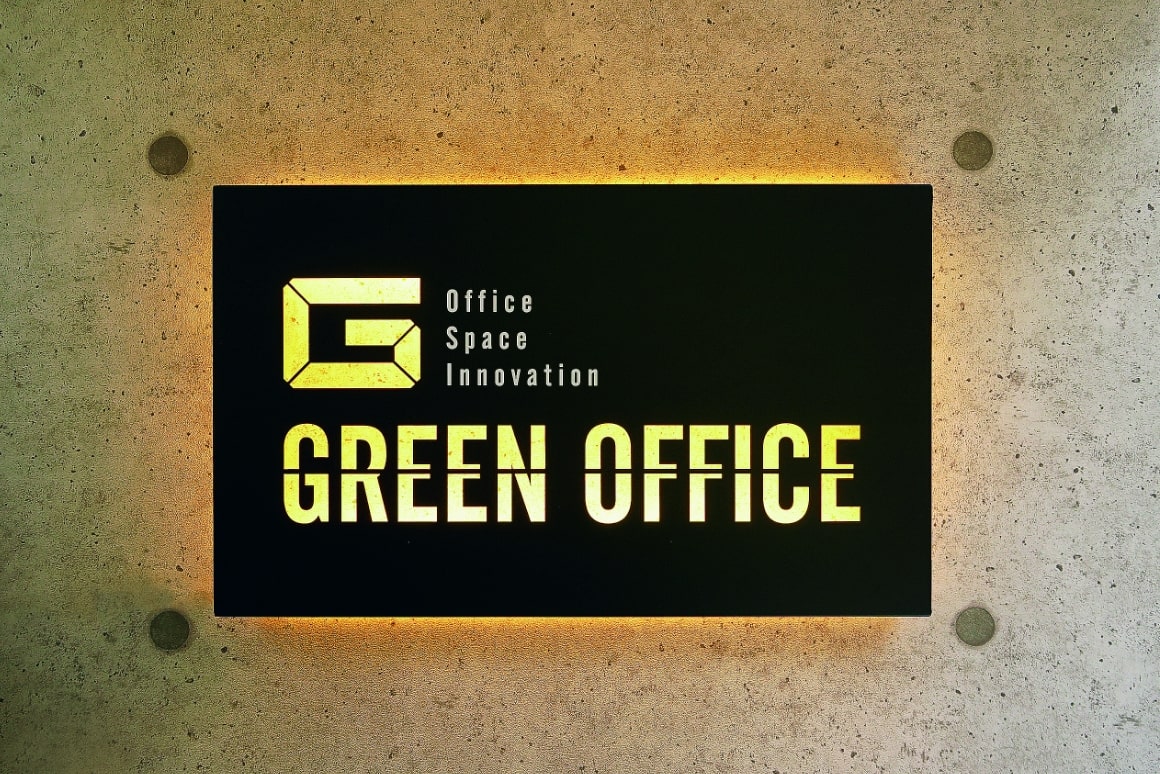

・Indirect luminescence for more dramatic effects and a slim, space-efficient profile.

・Structural design with safety and workability in mind. And two types of casings to choose from.

・LW and RGB can be paired with our Motion Memorizing Controller for a wider multifaceted range of expression.

・Dimmable according to the illuminance of the construction environment.

*Motion Memorizing Controller / Dimming Controller are sold separately.

DAIKAN LED Line

	White		Lamp	Lamp & White (LW)		RGB
Input Voltage	12V	24V	12V	12V	24V	12V	24V
Color/Temperature (K)	White/6,500K	White/6,500K	Lamp/2,700K	White/6,500K 〜 Lamp/2,700K	White/6,500K 〜 Lamp/2,700K	R / 632nm G / 523nm B / 465nm	R / 632nm G / 523nm B / 465nm

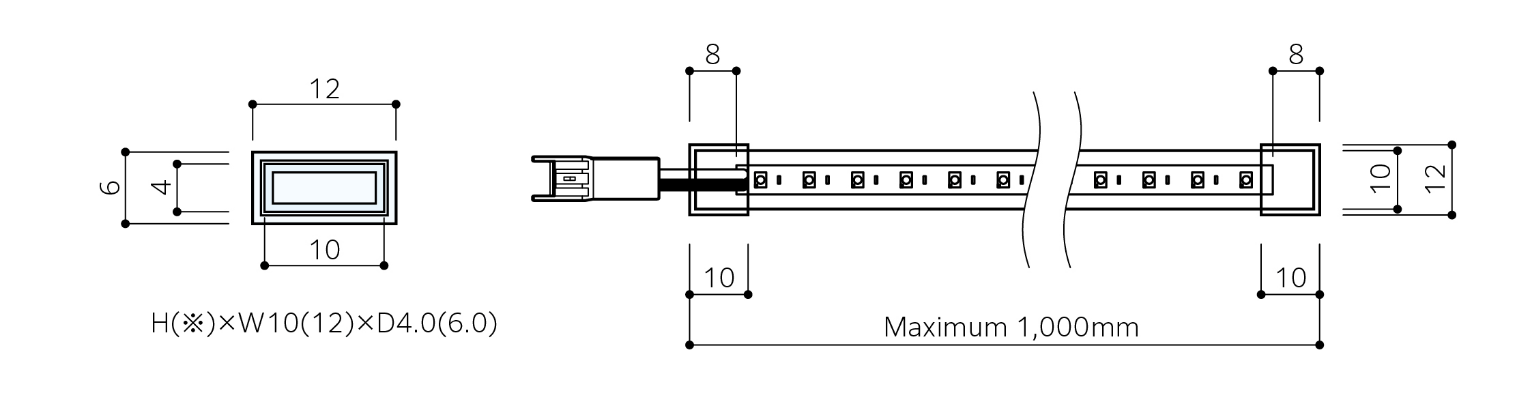

Size (H×W×D)	H( * )×W5×D1.4	H( * )×W5×D1.4	H( * )×W5×D1.4	H( * )×W8×D1.4	H( * )×W8×D1.4	H( * )×W9×D2.0	H( * )×W9×D2.0
Power Consumption	0.38W (1 Circuit 25mm)	0.76W (1 Circuit 50mm)	0.38W (1 Circuit 25mm)	0.76W (2 Circuit 50mm)	1.52W (2 Circuit 100mm)	0.612W (1 Circuit 75mm)	1.223W (1 Circuit 75mm)
Minimum Length (mm)	25mm (3 LEDs)	50mm (6 LEDs)	25mm (3 LEDs)	50mm (6 LEDs)	100mm (12 LEDs)	75mm (3 LEDs)	75mm (6 LEDs)
Maximum Length (serial)*Two cables from the LED Line for a length of over 1000mm	2,000mm					1,950mm
Maximum Length (parallel)Maximum Length for an AC/DC Power Supply 150W (mm)	150W / 4,925mm	150W / 4,900mm	150W / 4,925mm	150W / 4,925mm	150W / 4,900mm	150W / 9,150mm	150W / 4,575mm
Installation Environment	Indoor use only (non-waterproof)
Usable Temperature (Celsius)	-25℃〜60℃
