Lumi Light Panel SLIM

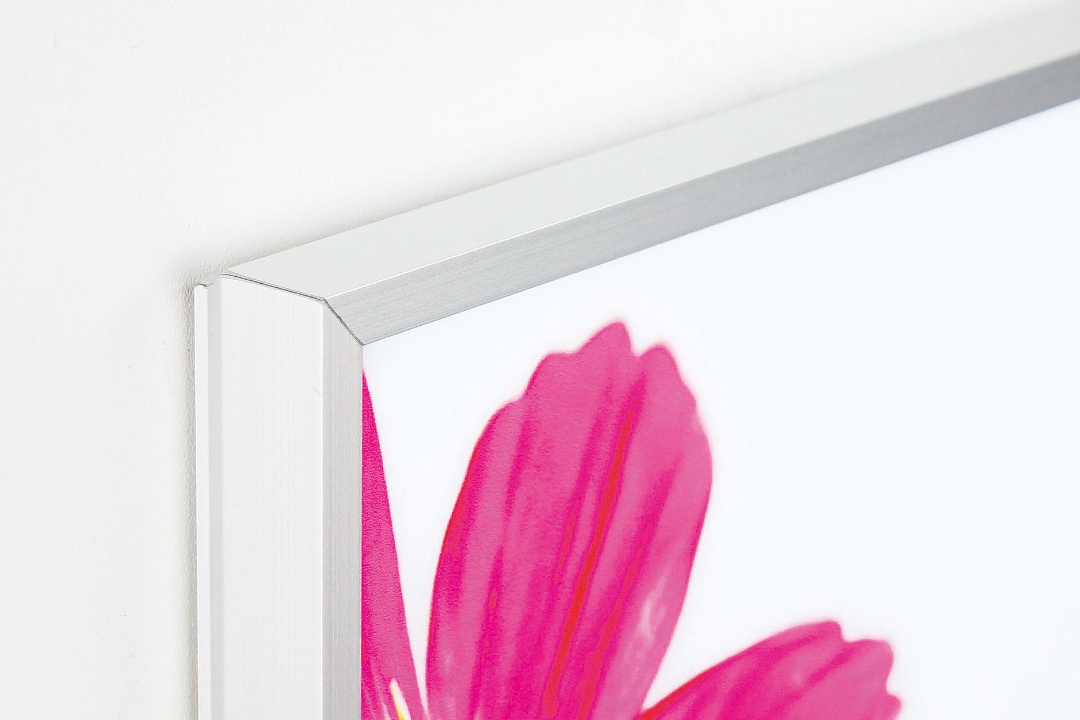

An industry-leading ultra slim body with an average brightness of over 5,000 lux. A stylish LED luminescent system with an easy display panel replacement.

・The slimmest illuminated signage in the industry. ・Outstanding brightness with average illuminance above 5000LX. ・Locking mechanism for easy change of display content and protection against vandalism. ・Adjustable size

(Minimum: 75×150mm~Maximum: 425×600mm)

*Certain sizes may not be achieved due to restrictions of the light source (LED circuit board). Please contact us for further information.
*Maximum size differs if the frame has to be non-removable. Please contact us for further information.

SLIM

LED Color

*Basic LED color for Lumi Light Panel "SLIM" is White. Special request for Warm White and Lamp Color could also be fulfilled.

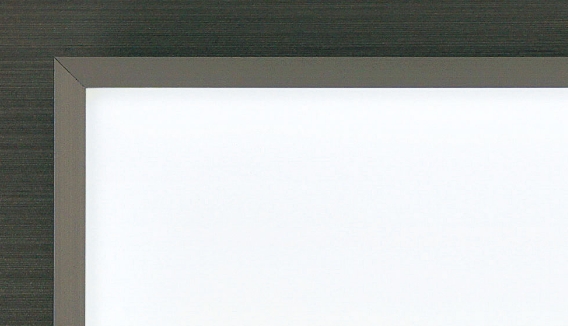

Color Temperature: approx. 7000K

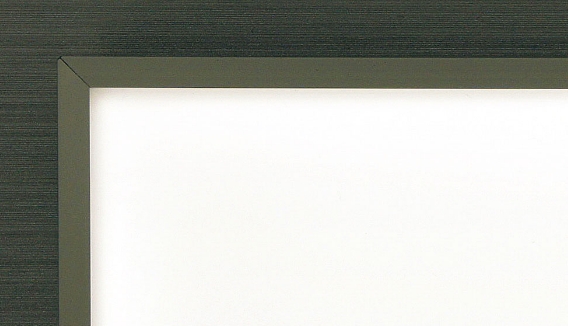

Color Temperature: approx. 5000K *Custom made color
Color Temperature: approx. 3000K *Custom made color

*The actual colors may slightly differ from images above.

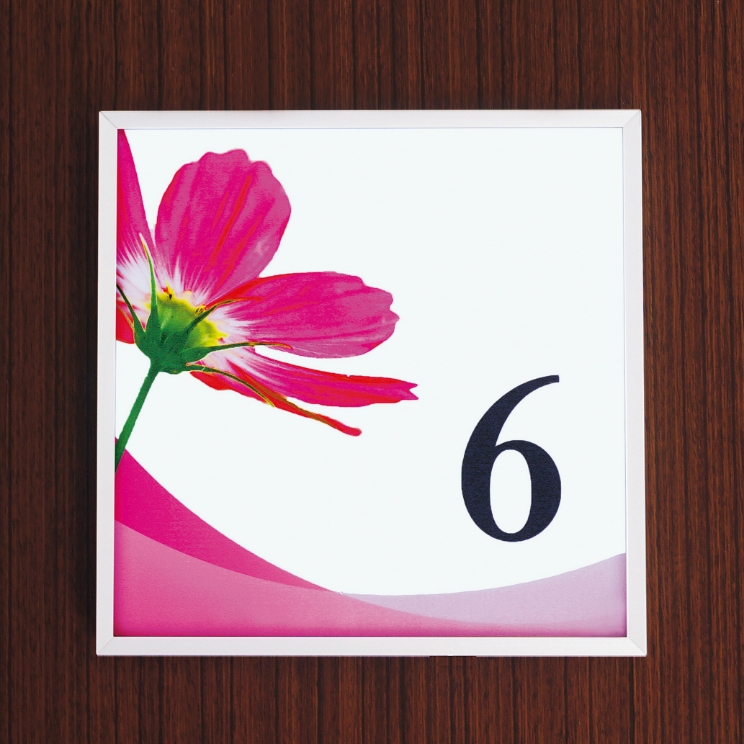

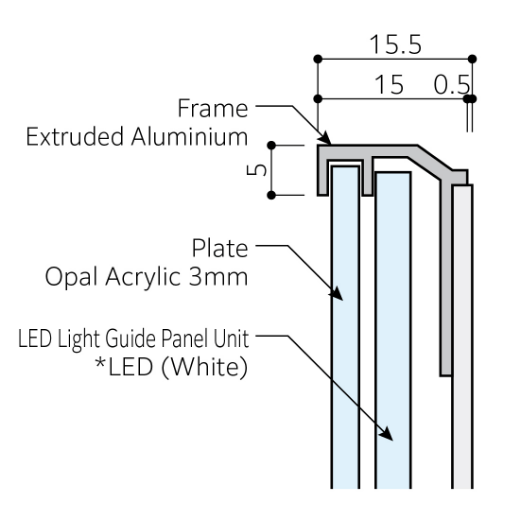

Lumi Light Panel SLIM (Square Type)

Average Surface illuminance (≒7000K)
over 5900LX

(Picture) Product Code: LLPS-INF-1515 LED: White Display content: Inserted Inkjet Sheet

Plate①

Opal Acrylic 3mm
Plate②

Clear Polycarbonate 0.5mm
+ Opal Acrylic 2mm

Lumi Light Panel SLIM (A Series・B Series)

Average Surface illuminance (≒7000K)
over 5000LX(B1)

(Picture) Product Code: LLPS-INF-A2 LED: White Display content: Inserted Inkjet Sheet

Plate①

Opal Acrylic 3mm
Plate②

Clear Polycarbonate 0.5mm
+ Opal Acrylic 2mm

2 Types of Plates to Choose From

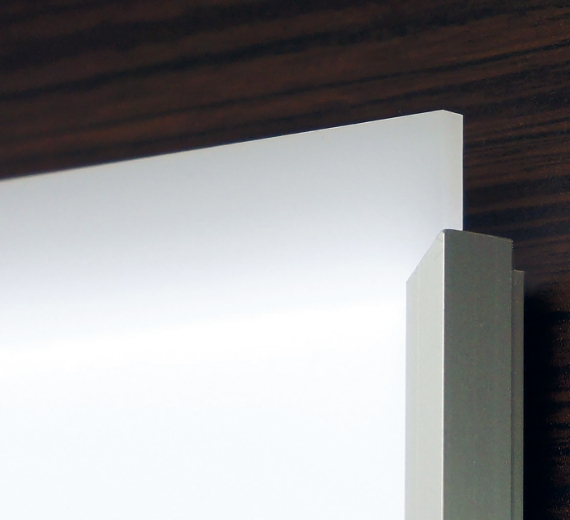

Plate①

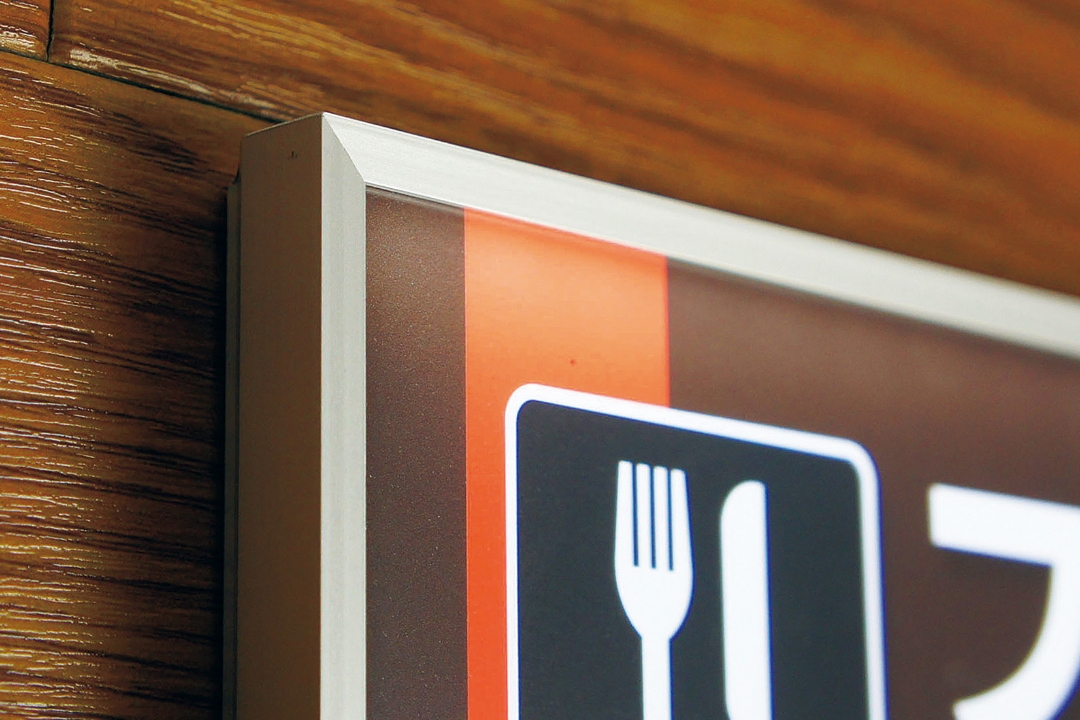

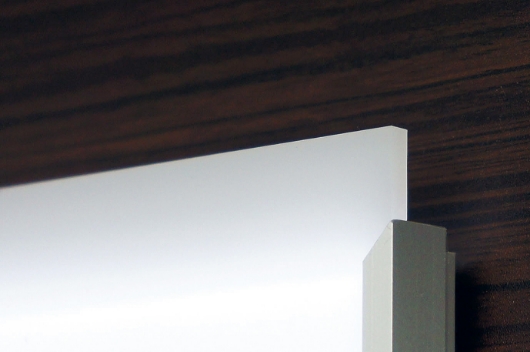

Slim shop sign can be done by simply adhering inkjet sheet or cutout vinyl letters to the display plate. It is also recommended for information sign within commercial facilities.

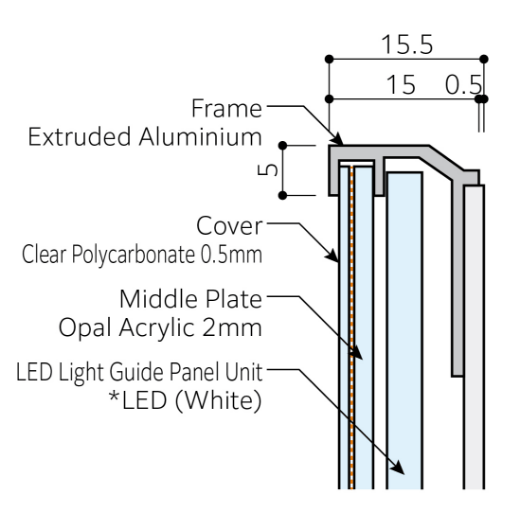

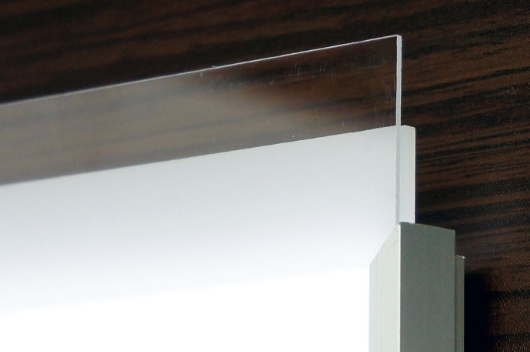

Plate②

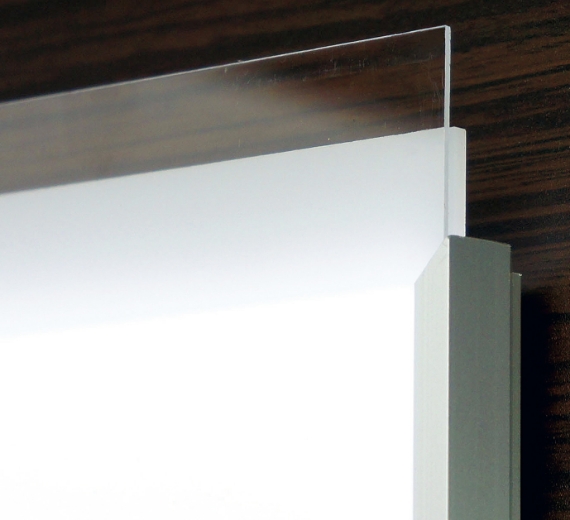

It is convenient to insert graphic film (for illuminated signboard) between the cover and middle plate. This product is recommended for information sign which needs regular change of display content.

Safety Lock (*For Lumi Light Panel SLIM・Lumi Light Panel Edge Free)

Lumi Light Panel "SLIM" and "Edge Free" are built with a locking mechanism for prevention of careless openings and protection against vandalism.

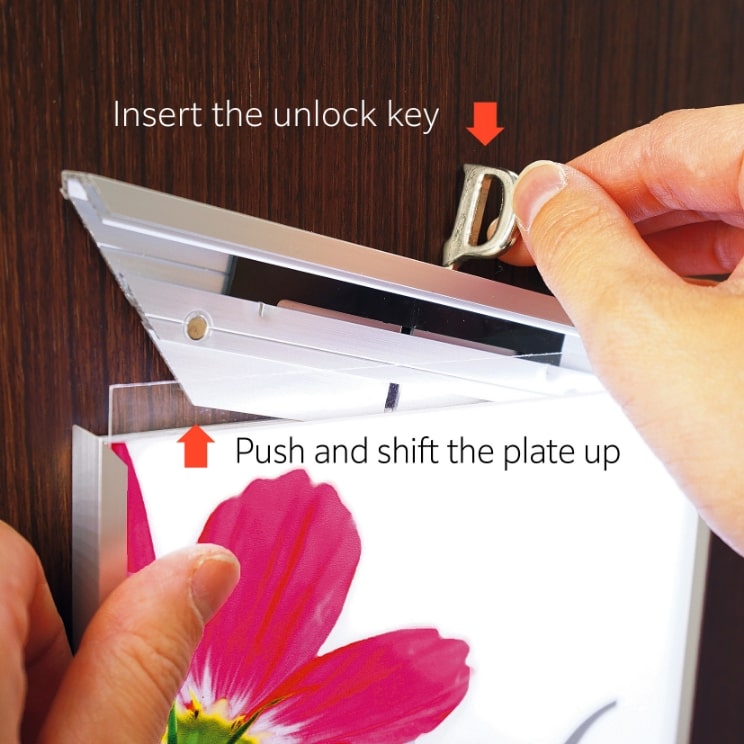

On the side, there is a hole for unlocking the safety lock. Push and shift the plate up while inserting the key. Then the frame can be taken off.

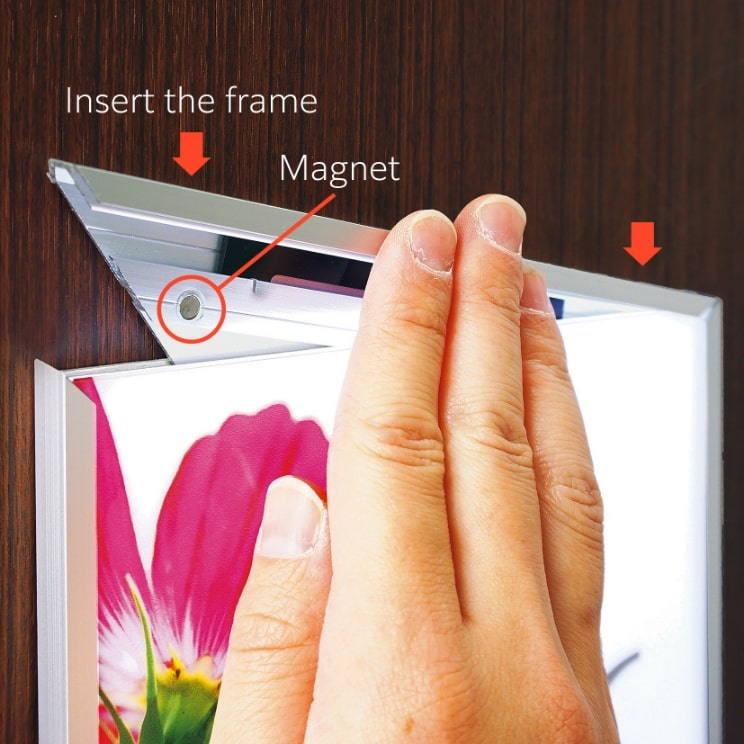

After changing the display content, insert the frame. The magnet will help fixing the frame back to its original position and then it is locked.

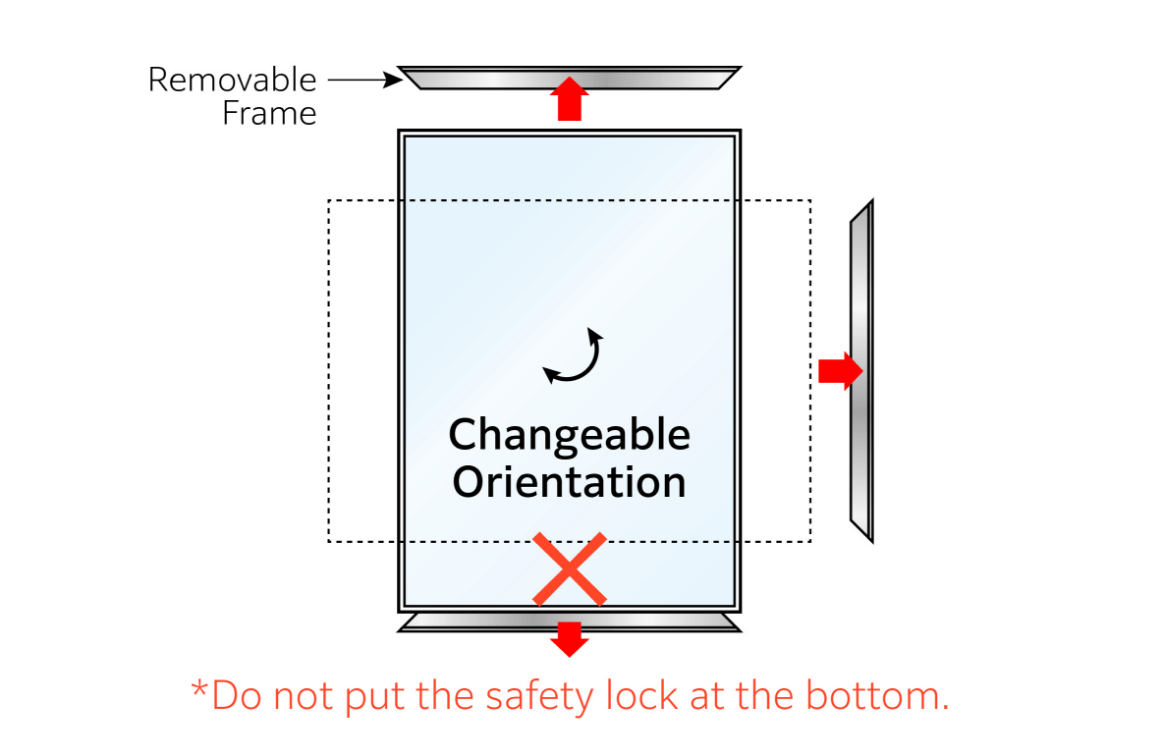

Changeable Orientation

The orientation of Lumi Light Panel "SLIM" and "Edge Free" can be changed to fit the location or graphics. *Do not put the safety lock at the bottom.

Although the orientation of Lumi Light Panel "SLIM" and "Edge Free" can be changed, the location of removable frame is fixed. *The location of removable frame can be changed by special order, but requests may not be fulfilled due to restrictions of LED light source. Please contact us for further information.

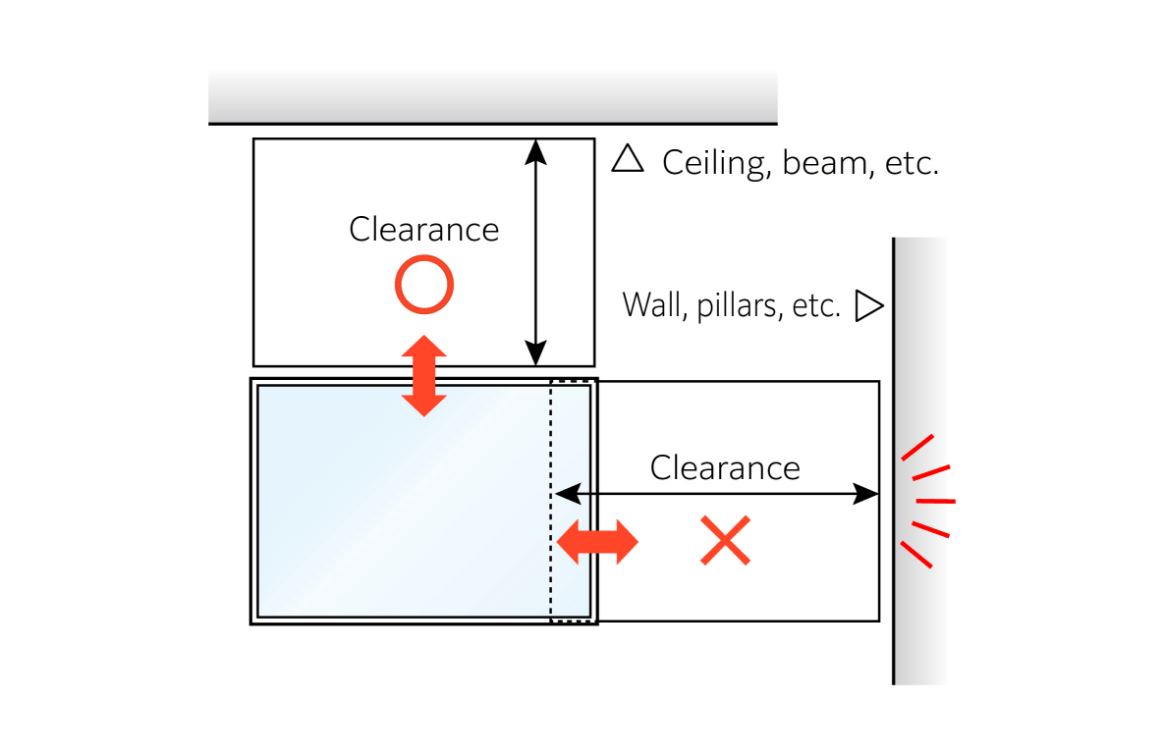

During installation, please make sure that there is sufficient clearance - with area larger than the panel. on the left, right and top of the signage. Please note that if the clearance is not sufficient, exchange of plates will be impossible.

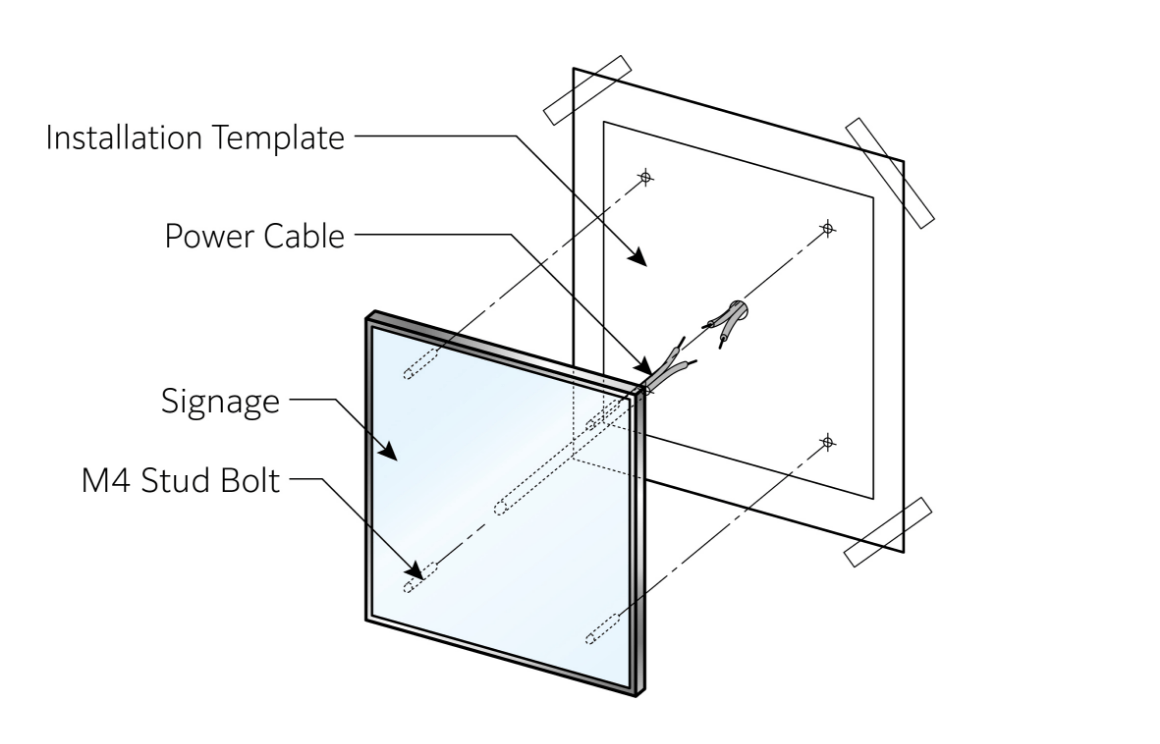

Installation Method

Stud bolts are used for installing Lumi Light Panel "SLIM" and "Edge Free".

M4 stud bolts are used for installation of this product.
Please carefully read the installation manual, which comes together with the installation template, and follow the instructions to ensure safe installation work.
