LED Peripheral Device

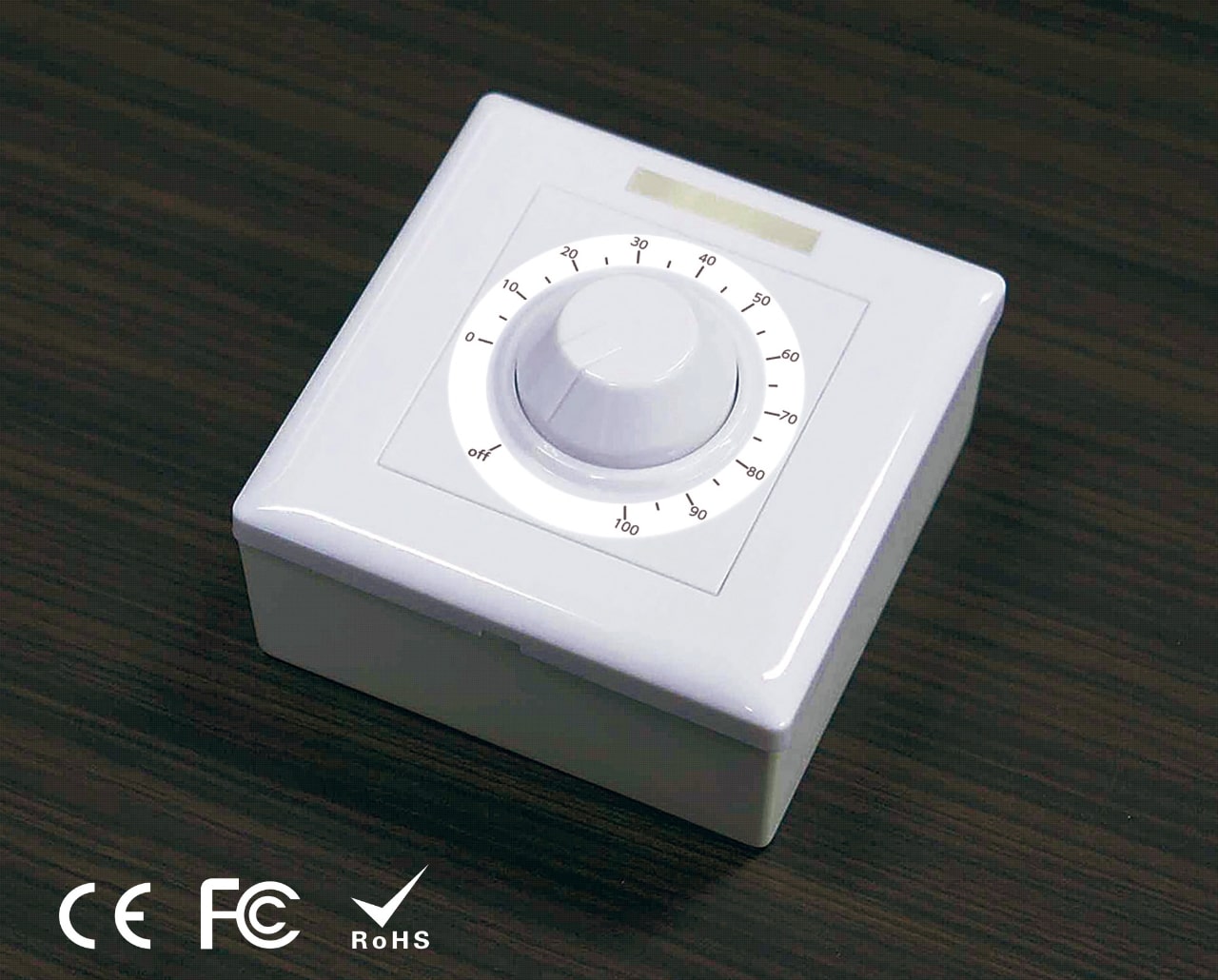

Dimming Controller
The optimal level of brightness can be chosen from 0 – 100% with a single knob.
Comfortable illumination that suits the space.
In designing spaces, lighting is a crucial element. A sign’s brightness can be adjusted to the best level that suits the location by using a stepless dimming controller. Moreover, dimming the lights contributes to your energy and power savings, while also extending the lifespan of the LEDs.
Dimmer Control
Product Descriptions
| Product Name | Dimming Controller |
|---|---|
| Product Number | DK-D1224-ZB2 |
| Input | DC12~24V |
|---|---|
| Output | 6A |
| Output Signal | PWM |
| Dimming Range | 0~100% |
| Weight | 125g |
| Installation | Floor stand or On-wall screw fixing ( indoor ) |
|---|---|
| Available Power Supply | Marked ◆◆ in the list of AC/DC power supply |
| Warranty Period | 1 year from the date of purchase. (Will be replaced with working product.However, does not include arising expenses for installation works.) |
| Options with Dimming Controller | AC/DC Power Supply ( Capacity varies depending on LED quantity ) |

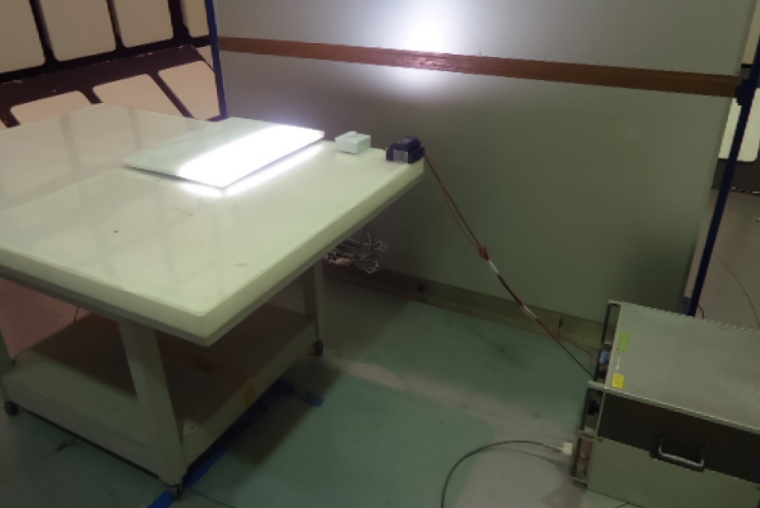

Proven with EMC (Electromagnetic compatibility) testing by a third-party
EMC testing conducted by a third-party verified that any electromagnetic interference do not occur when using our dimming controller combined with the AC/DC power supply provided by us.

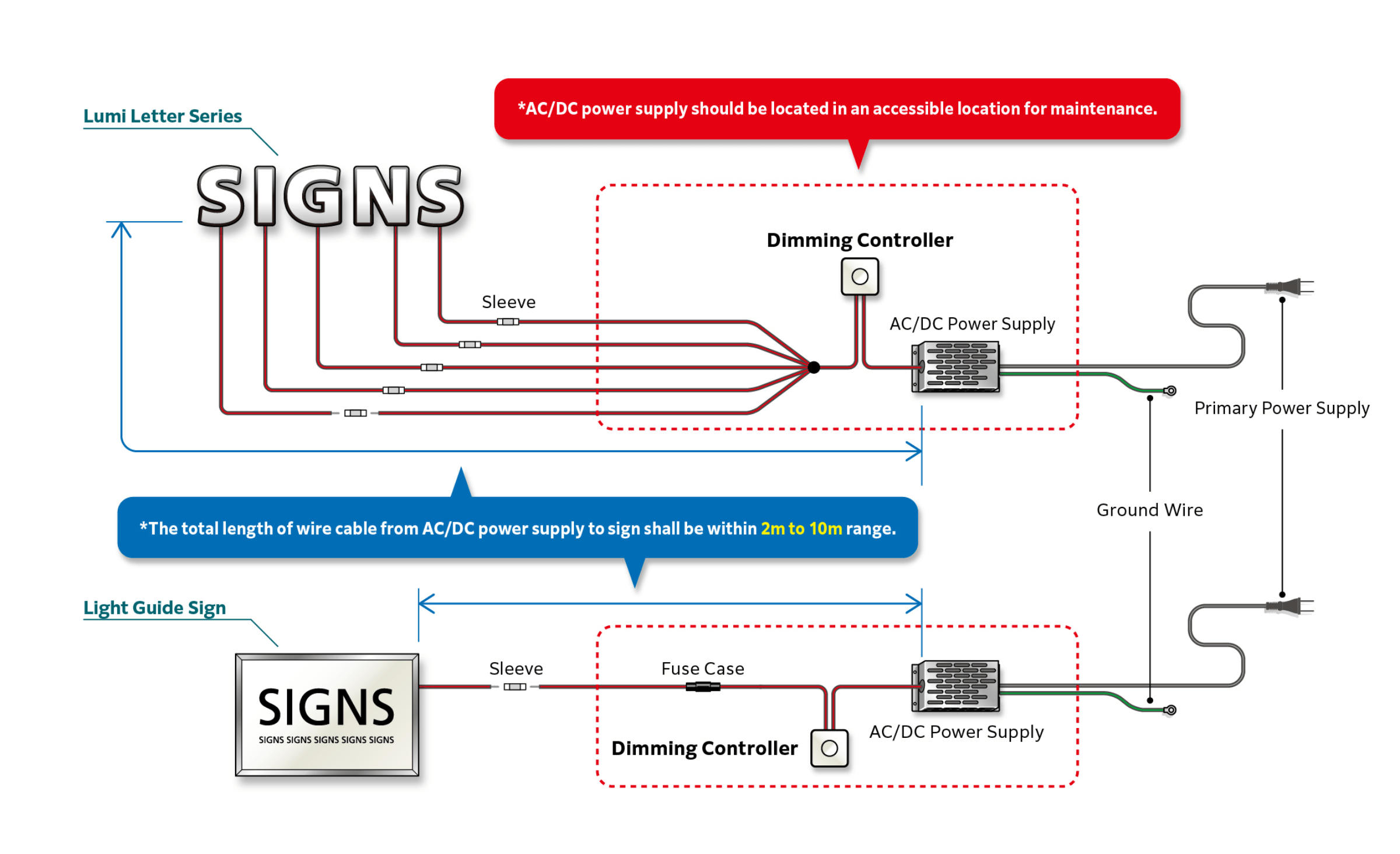

Dimming Controller Connection Diagram
Swipe left or right to view.
