Materials and Techniques

DAIKAN Hard Acrylic

Achieving a hardness of approximately 7H, comparable to glass. This can be used as sign plates and acrylic cases.

Our bubble-free adhesive bonding technique is the best in the industry!

Daikan Hard Acrylic is half the weight of glass and is ideal for frameless display cases. Staff members can easily lift the case and smoothly replace the products.
Our meticulous adhesive bonding is achieved by our experienced staff using bubble-free bonding technique. This has earned us a great reputation.

DAIKAN Hard Acrylic

Characteristics

Overcoming weak points of standard acrylic, DAIKAN Hard Acrylic can be proposed for various uses.

Sign Plates

The surface hardness is about 7H! It is hard to damage by cleaning.

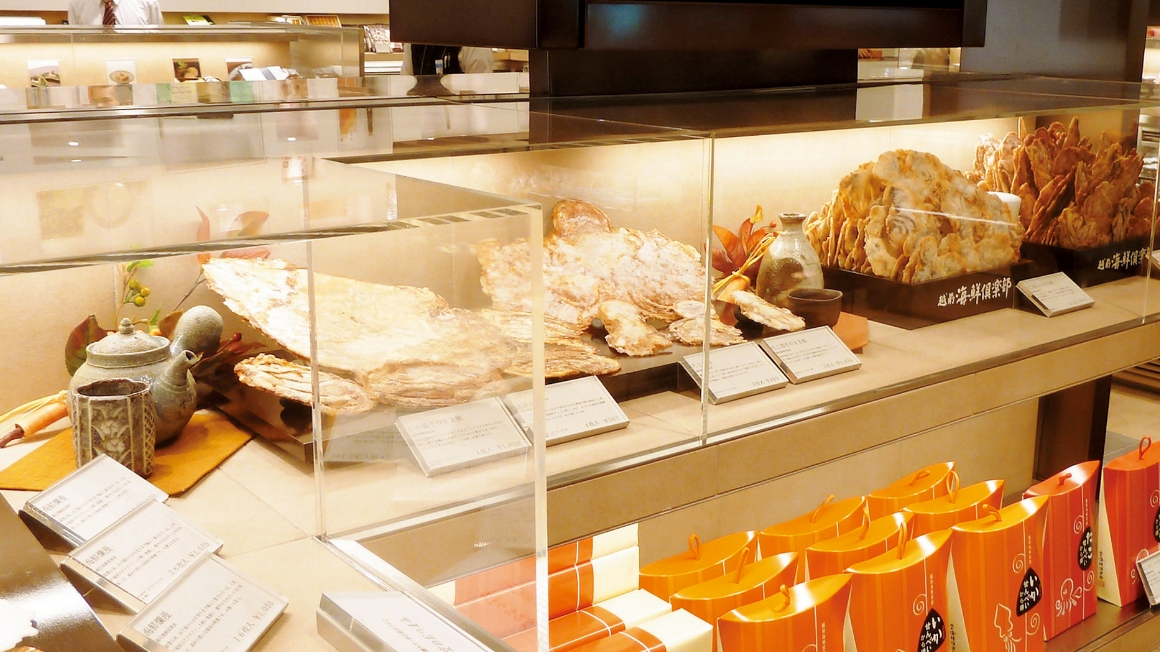

Display Cases

Non-bubble gluing technique allows a beautiful finish on a mitered edge.

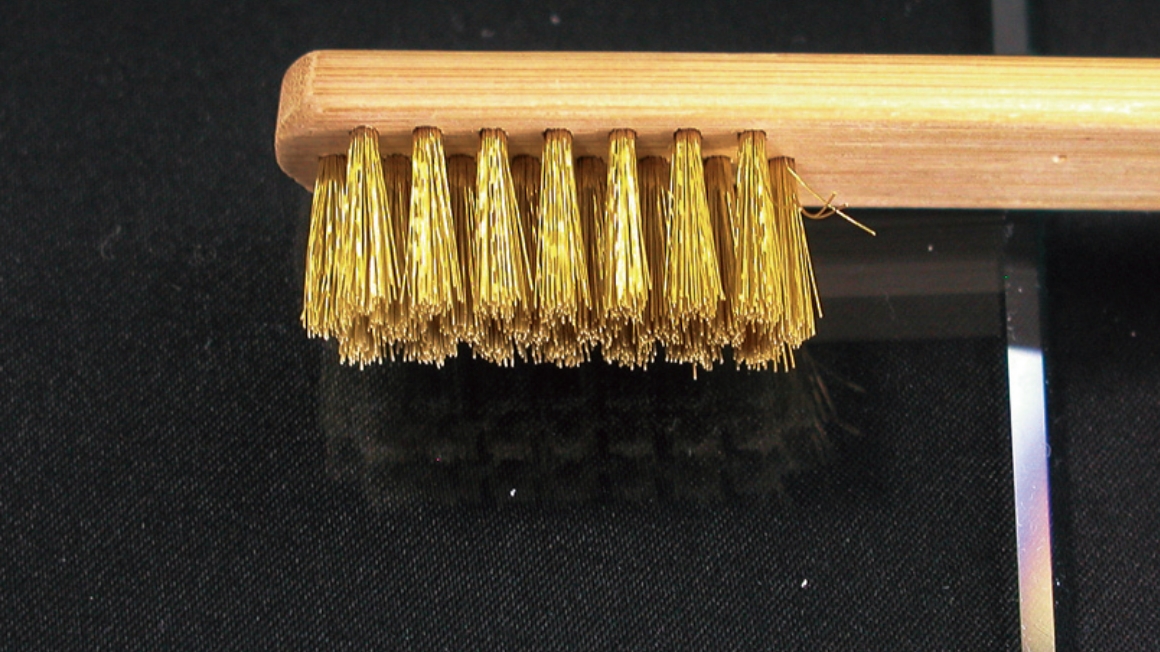

Results of Surface Strength Test

The difference between standard acrylic and Daikan Hard Acrylic is very obvious when scratching. With its scratch-proof qualities, our acrylic is suitable for sign plates or cases requiring frequent cleaning. *Please note that the cut and engraved surfaces of Daikan Hard Acrylic to be the same hardness as standard acrylic (approx. 2H).

Daikan Hard Acrylic (approx. 7H)
Standard Acrylic (approx. 2H)

COLOR VARIATION

*Maximum size: DHA01-CL 2200x1300x5mm Thick / Others 1800x1200x5mm Thick.

DHA01-CL
DAIKAN HARD ACRYLIC (Clear)

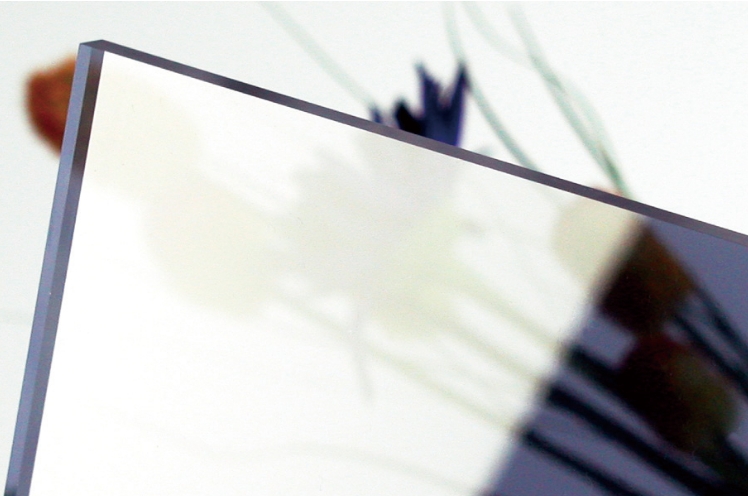

DHA01-HM
DAIKAN HARD ACRYLIC (Clear Half Mirror)

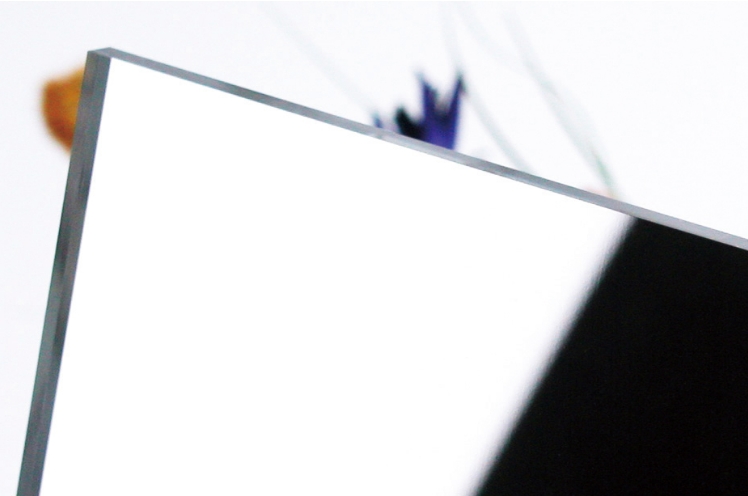

DHA01-M
DAIKAN HARD ACRYLIC (Clear Mirror)

General Characteristics

Thermal Cycle Test: 10 sets of -35 celsius×6 hours and 72 celsius×3 hours. Numerical values are representative values and not guaranteed.

	Test Method	Units	DAIKAN HARD ACRYLIC	Standard Cast Acrylic Sheet	Inorganic Glass
Specific Gravity	JIS K7112		1.19	1.19	2.5
Total Light Transmittance	JIS K7105	%	93	93	89
Pencil Hardness	JIS D0202		6～7H	2H	more than 9H
Tensile Strength	JIS K7113	MPa	64	75	49
Tensile Breaking Strain	JIS K7113	%	2.2	4.5	0.1
Thermal Cycle Test			No defects	No defects	No defects

Swipe left or right to view.

Notes for Production Data Creation

Artwork to be provided in Adobe Illustrator format.

Swipe left or right to view.

*Orders only for materials are not available. Materials with Crystal Engraving, Crystal Cut or UV Direct Print are available from a single-unit order.

*Bending and surface bonding are not applicable to Daikan Hard Acrylic.
